Metal Drawer Set High AxisPro GLASS Slim Box System C168mm Height.

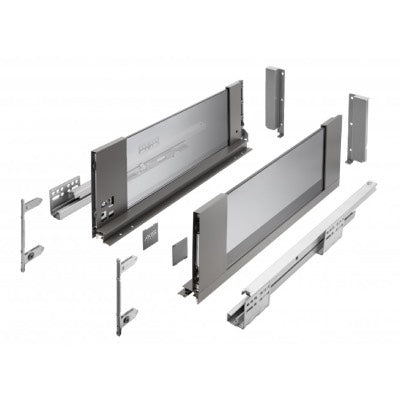

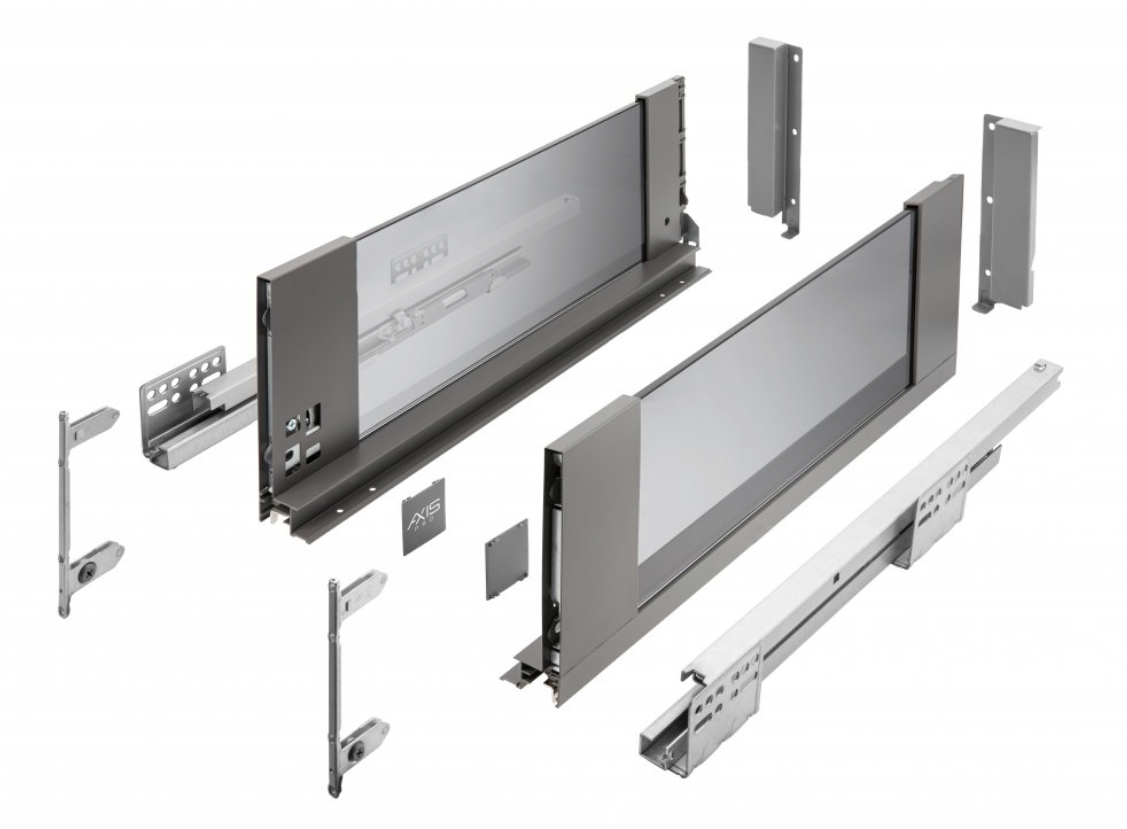

All-purpose application, the AxisPro drawer system is a solution for every type of interior. Subtle design with glass sides, the drawer becomes light and elegant. Firstly, we provide a wide range of design options, including 5 heights of standard and internal drawers. Secondly, the drawer side panel, only 14 mm wide, gives the drawer a simple and modern look, and the system finish in Metal Drawer Set Low White AxisPro Slim Box System A86mm and anthracite. AxisPro has also a simple 2 plane front adjustment - vertical and horizontal Additionally, the full extension allows access to the entire contents of the drawer Drawer comes with safety glass Closing: Soft Close Extension: Full Extension Front panel angle adjustment Allowable load: 40 kg Colour: Anthracite Side Heights C: 168 mm Minimum Height Require: 198 mm Available lengths: 350 mm, *400 mm, 450 mm, 500 mm, 550mm Drawer type: Standard or inner Material: Steel Set contains: - 2x drawer sides with glass - 2x soft close drawer runners - 2x front fixings - 2x back brackets Bottom/Base, back (16mm board) and front panels are not included Fitting instruction AxisPro.pdf
Drilling template available for easy installation AXISPRO Template *Please Note: only 400, 450, 500mm are available now
