Metal Drawer Set High AxisPro Slim Box System C168mm

Metal Drawer Set High AxisPro Slim Box System C168mm Height.

All-purpose application, the AxisPro drawer system is a solution for every type of interior.
Subtle design thanks to the use of thin side panels, the drawer becomes light and elegant.
Firstly, we provide a wide range of design options, including 5 heights of standard and internal drawers.
Secondly, the drawer side panel, only 14 mm wide, gives the drawer a simple and modern look, and the system finish in Metal Drawer Set High White AxisPro Slim Box System C168mm and anthracite.
While anthracite colour finishes will help creating many unusual arrangements
Comfortable working and use, the new mechanism increases the operating performance of the drawer and guarantees best running action.
AxisPro has also a simple 2 plane front adjustment - vertical and horizontal, which increases the comfort of the system installation.
Additionally, the full extension allows access to the entire contents of the drawer
Metal Drawer Set High AxisPro Slim Box System C168mm
Closing: Soft Close
Extension: Full Extension
Further,Vertical and Horizontal adjustment of drawer front
Front panel angle adjustment
Allowable load - 40 kg
Colour: Anthracite
Side Heights C: 168 mm,
Minimum height require: 198 mm
Available lengths: 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 550 mm, 600 mm
Drawer type: Standard or inner
Material: Steel

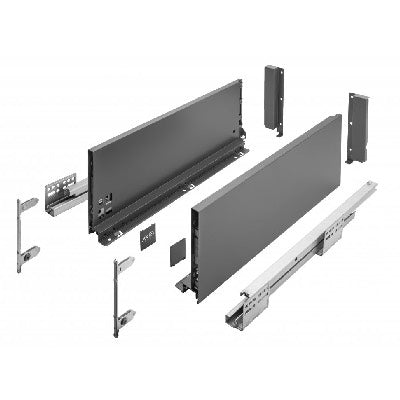

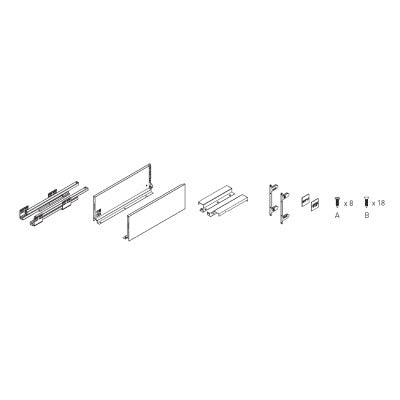

Set contains:
- 2x drawer sides
- 2x soft close drawer runners
- 2x front fixings
- 2x back brackets
Bottom/Base, back (16mm board) and front panels are not included
Fitting instruction AxisPro.pdf
