Metal Drawer Set Low Black AxisPro Slim Box System A86mm

Metal Drawer Set Low Black AxisPro Slim Box System A86mm Height.

All-purpose application, the AxisPro drawer system is a solution for every type of interior. Subtle design thanks use of thin side panels, the drawer becomes light and elegant. Firstly, we provide a wide range of design options, including 5 heights of standard and internal drawers*
Secondly, the drawer side panel, only 14 mm wide, gives the drawer a simple and modern look, and the system finish in White and Anthracite.
While black colour finishes will help creating many unusual arrangements
AxisPro has also a simple 2 plane front adjustment - vertical and horizontal
The full extension allows access to the entire contents of the drawer
Metal Drawer Set Low AxisPro Slim Box System A86mm
Closing: Soft Close
Extension: Full Extension
Allowable load: 40 kg
Colour: Black
Side Heights A: 86 mm
Minimum Height Require: 115 mm
Available lengths: 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 550mm
Drawer type: Standard or inner
Material: Steel

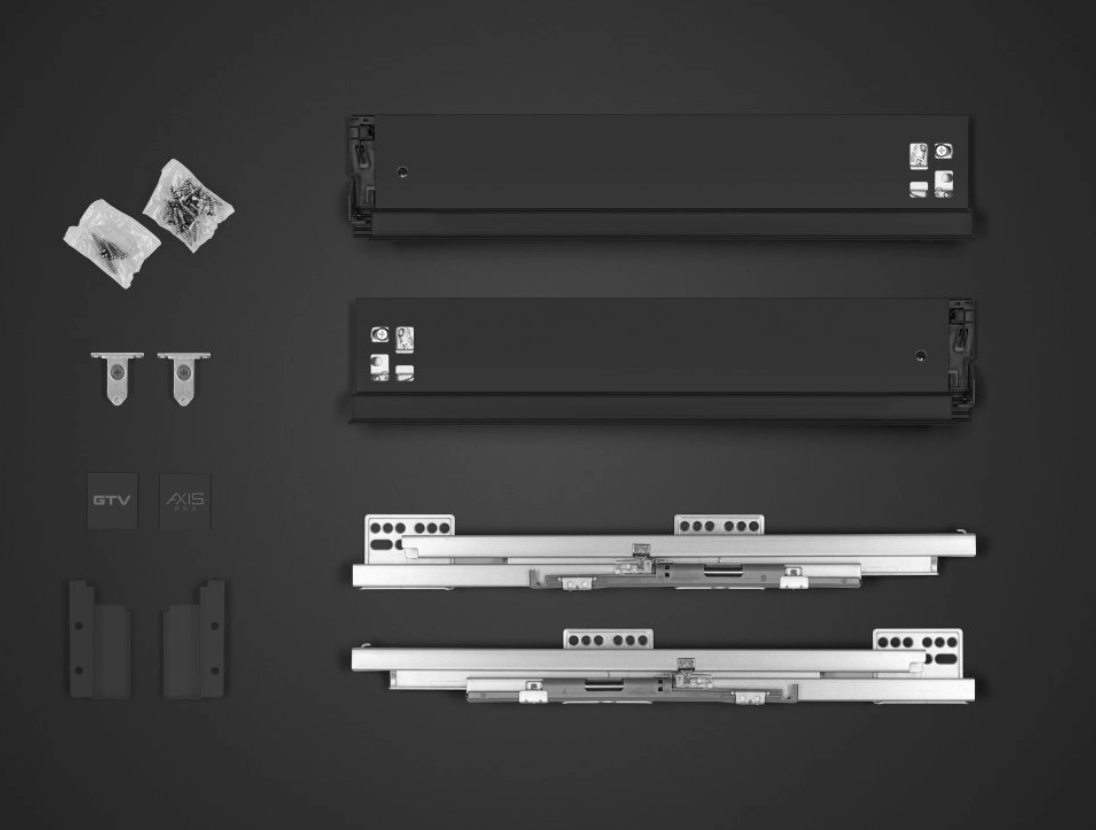

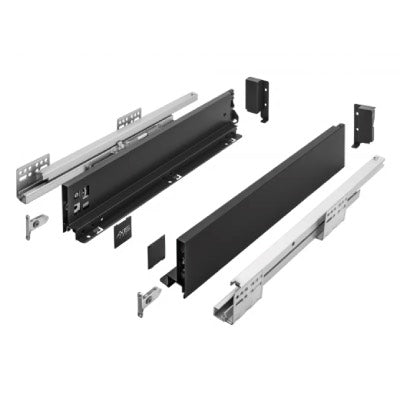

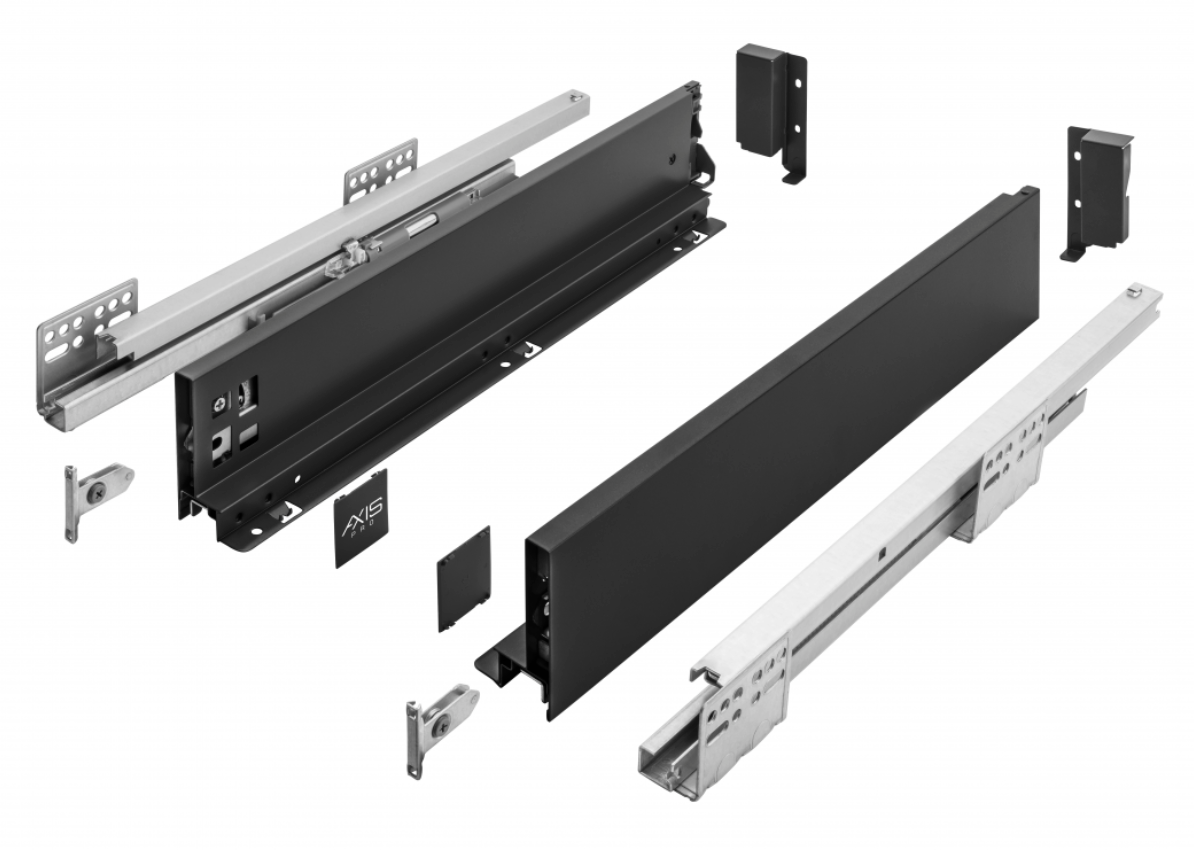

Set contains:
- 2x drawer sides
- 2x soft close drawer runners
- 2x front fixings
- 2x back brackets
Bottom/Base, back (16mm board) and front panels are not included
Fitting instruction AxisPro.pdf

Drilling template available for easy installation AXISPRO Template

*Please Note: only 450, 500mm are available now
