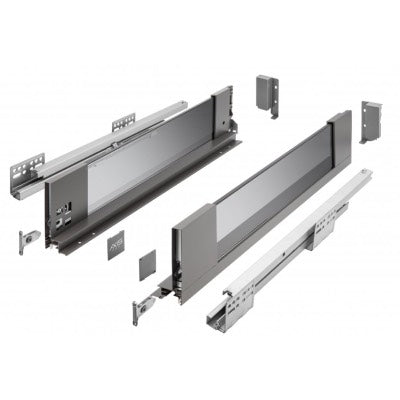

Metal Drawer Set Medium AxisPro GLASS Slim Box System B120mm

Metal Drawer Set Medium AxisPro GLASS Slim Box System B120mm Height.

All-purpose application, the AxisPro drawer system is a solution for every type of interior.
Subtle design with glass sides, the drawer becomes light and elegant.
Firstly, we provide a wide range of design options, including 5 heights of standard and internal drawers.
Secondly, the drawer side panel, only 14 mm wide, gives the drawer a simple and modern look, and the system finish in Metal Drawer Set Low White AxisPro Slim Box System A86mm and anthracite.
Comfortable working and use, the new mechanism increases the operating performance of the drawer and guarantees best running action.
AxisPro has also a simple 2 plane front adjustment - vertical and horizontal
Additionally, the full extension allows access to the entire contents of the drawer
Drawer comes with safety glass
Closing: Soft Close
Extension: Full Extension
Front panel angle adjustment
Allowable load - 40 kg
Colour: Anthracite
Side Heights B: 120 mm
Minimum Height Require: 147 mm
Available lengths: 350 mm, 400 mm, 450 mm, 500 mm, 550mm
Drawer type: Standard or inner
Material: Steel

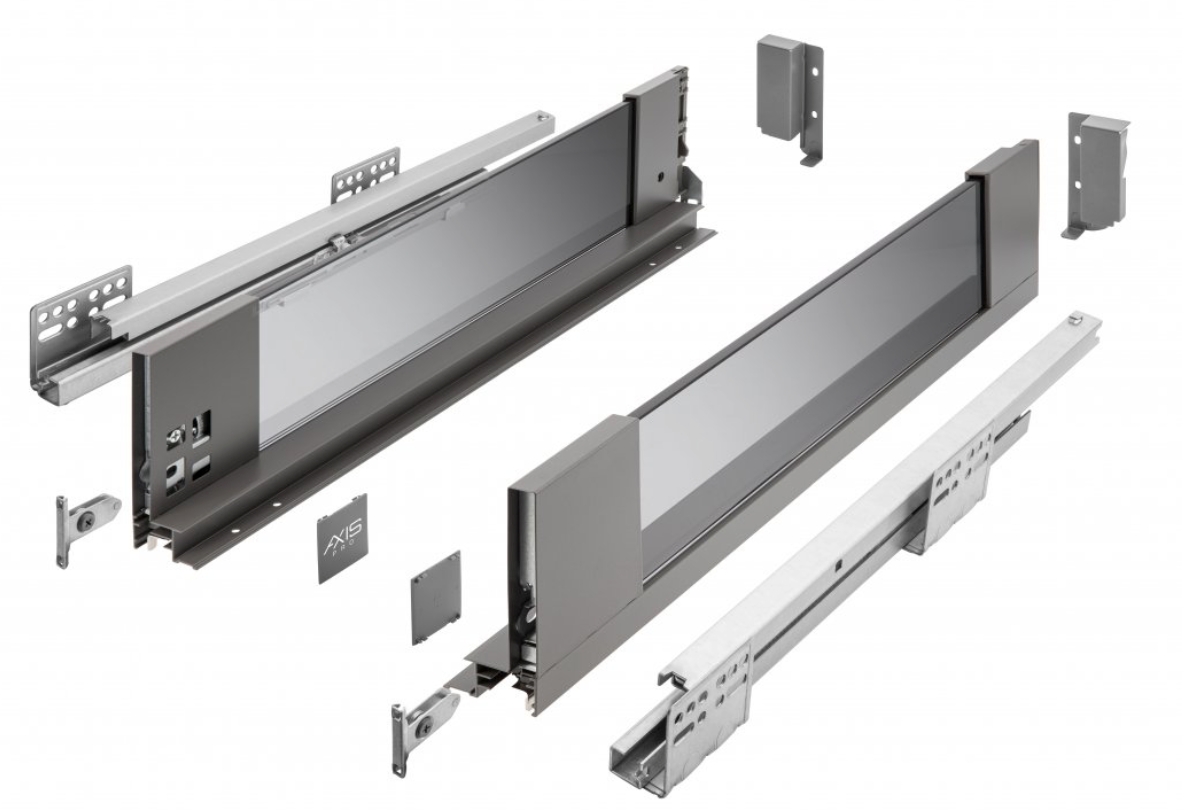

Set contains:
- 2x drawer sides with glass
- 2x soft close drawer runners
- 2x front fixings
- 2x back brackets
Bottom/Base, back (16mm board) and front panels are not included
Fitting instruction AxisPro.pdf

Drilling template available for easy installation AXISPRO Template
*Please Note: only 400, 450, 500mm are available now
