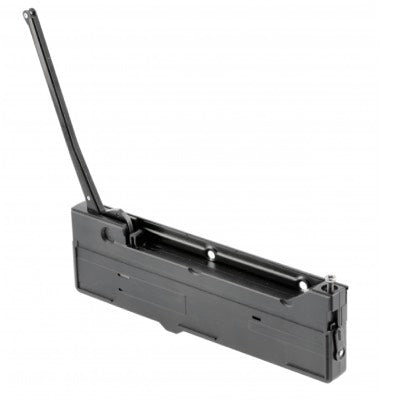

Push to Open and Soft Close Mechanism for Standard Doors

Push to Open and Soft Close Mechanism for Standard Cabinet Doors

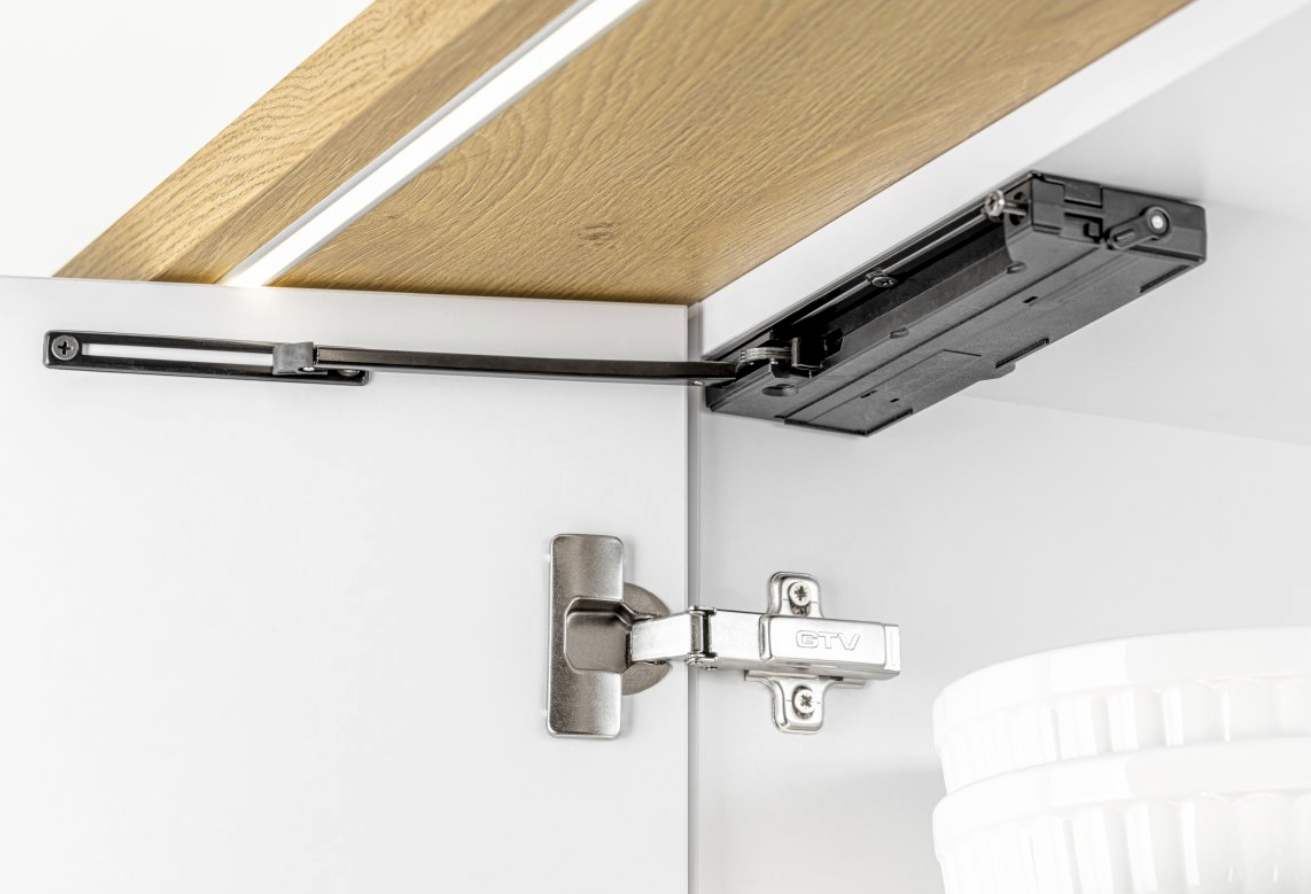

One touch push opening soft close mechanical system is an innovative product for soft close and push to open application. Integrating push opening and soft closing functions that can free your hands and allow you to operate the door in an environment vulnerable to bacteria. Hands free, hygienic and convenient to operate
Fully mechanical design, no need to connect with electric power
Smart design and occupying little space
Friendly-to-use as closing and opening only by gentle pressing
Revolutionary operation compares to regular push latches
Universal application for Full overlay, half overlay or inset doors.
Light version: 300x700mm door, 4kg-7.5kg max door weight
Heavy version: 600x2700mm door, 15kg max door weight
Size:
 - width: 203mm
 - depth: 18mm
 - height: 69.5mm
For opening angle:  ≤ 100°
Colour/finish: black
Material: steel/plastic
When the fitting is not completely installed, please do not press the activator at will
Has to be use with unsprung hinges
