Push to Open Ball Bearing Drawer Runners Black Standard Full Extension

Push to Open Ball Bearing drawer Runners Black Standard Full Extension.

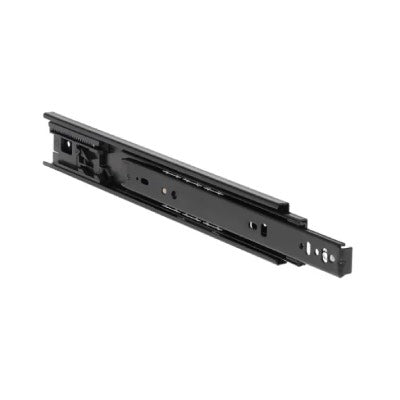

Push to Open drawer runners black, this Accuride light-duty slide introduces a new kind of effortless.
Activated by just 22N of force and with 100% extension, the DB3832-TR model will propel your hardware into the future with ease.
The touch-to-release mechanism in this speciality slide eliminates the need for knobs or handles, creating sleek cabinetry to match its seamless performance.
The DB3832-TR has been optimised for use in mobile applications that require stability in transit, such as in medical carts, vehicles, etc., through the stay-closed feature that works alongside the push-to-release mechanism.
The DB3832-TR also has a front disconnect feature, which allows for easy assembly or disassembly at a later date.
Suitable: Standard or inner drawer
Available in sizes - from 300mm to 700mm
Touch release - push drawer front to open or close
Opens drawers approximately 50mm - 125mm from the closed position
Activation force: 22N - 5kg
Quick Release System from front
Height - 45mm
Thickness - 12.7mm
Allowable load - 45 kg
Full extension Telescopic slider construction
Bearing: Ball bearings
Material: Mild Steel
Finish: Zinc/ Black
Mounting: Sider
With Cam Adjust
Optimum performance allow between +0.2mm and +0.5mm over the nominal runner thickness, for the runner space

Soft Close version available from here Drawer Runners Soft Close Side Mounted 45 mm Ball Bearing
Link for Movie DB3832-TR Black
