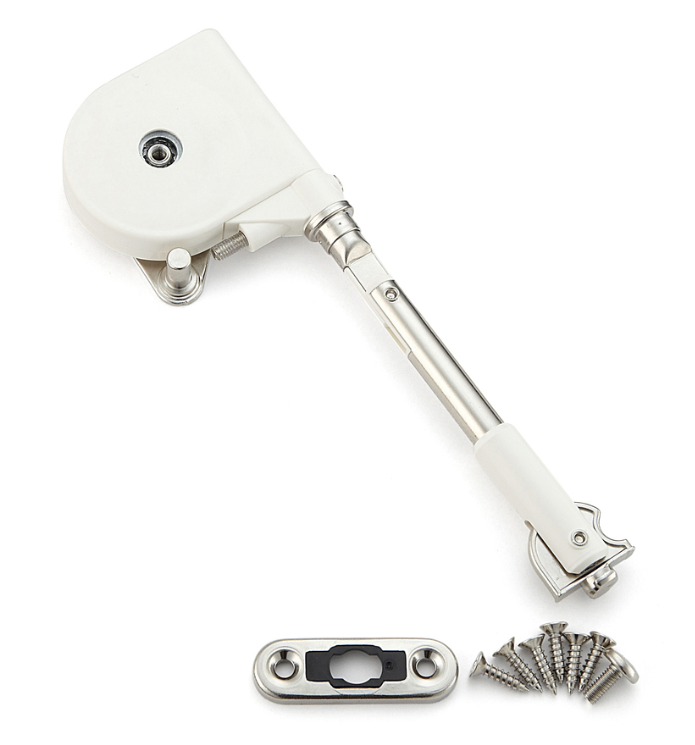

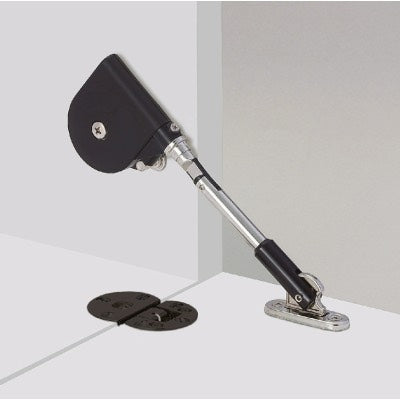

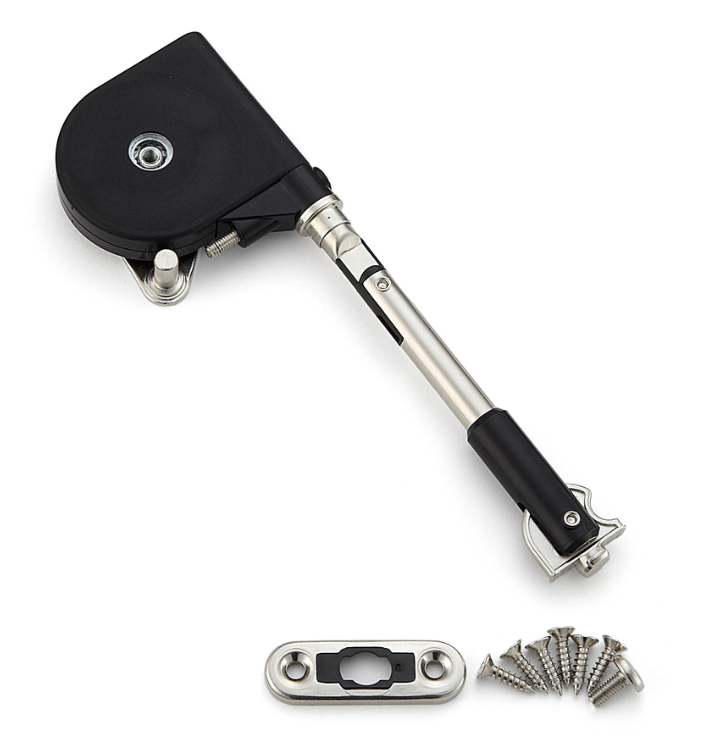

Soft Down Stay Lift for Drop Down Cabinet Doors Short-Arm with Catch

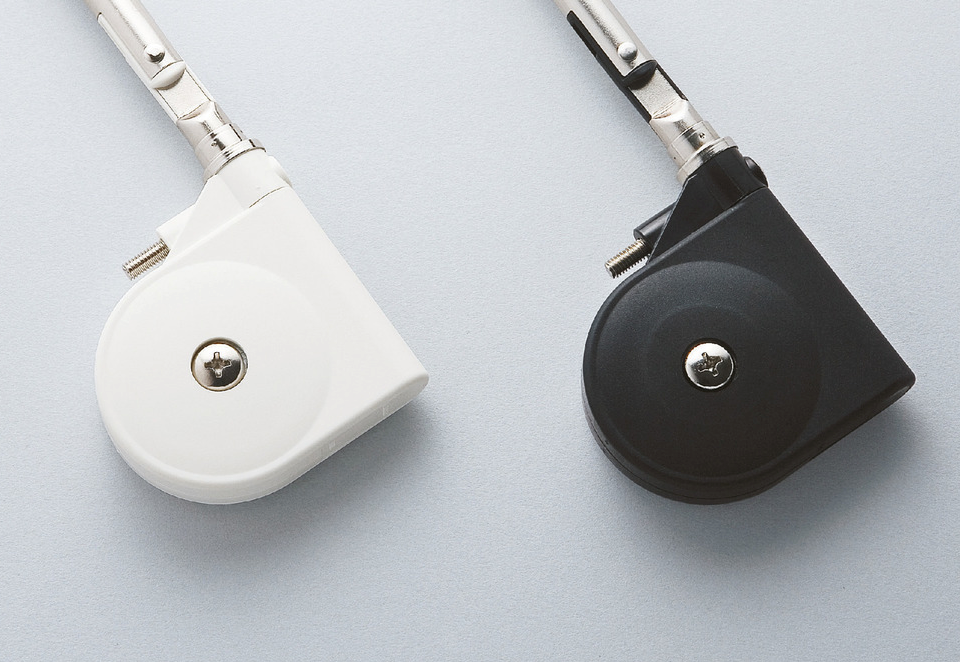

The soft close stay, made of steel, will find its application in flaps with a front height of up to 150-300mm with build in catch for holding the door in position when closed. Its mechanism prevents the inert descent of the front door or flap. Soft close for gently lowering of the flap with max torque 0.5-3.7N Suitable for use in wood or glass in an upwards or downward fitting. During assembly, it requires the use of flap hinges -not included. Front height from 150 to 300 mm and width up to 900mm Approximate opening angle: 90° Colour/Finish: Black, White TV versions are for 0.5-1.2N Torque Movement TVZ versions are for 1.6-37N Torque Movement Two stays will double the torque Material: Steel, Plastic Screws included: yes Stop in any position: no Type: Mechanical non-handed

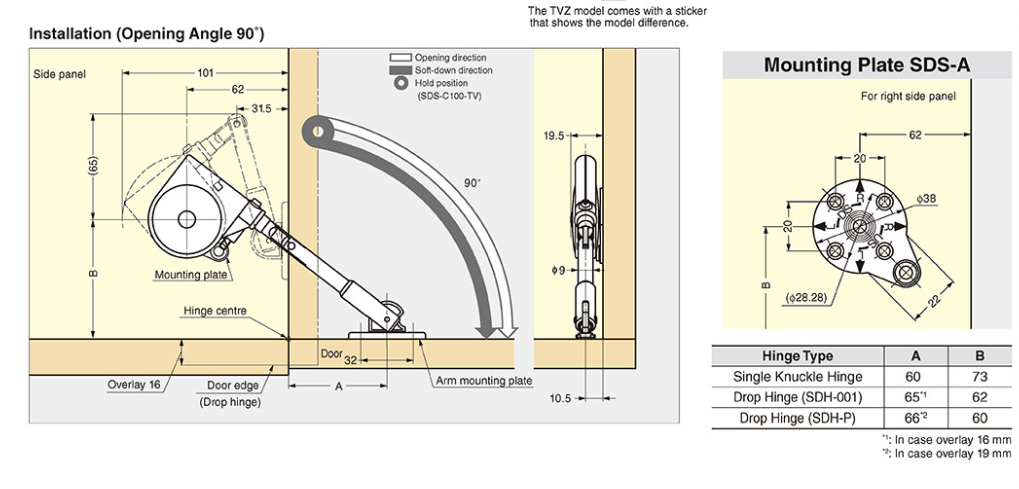

Kit Contents: 1 piece of stay, 1 pcs front mount, 1 pc frame mount and screws Installation manual to download with calculations for door size. Face plate for glass doors sold separately
