Sugatsune Concealed Straightener Bar Fixed for Large Door

Sugatsune Concealed Straightener Bar for Large Door-NON Adjustable

A large area where design has caused issues for installers is with the evolving trend for ever larger cabinet and wardrobe doors.
Larger doors, however, put a greater stress on the fittings and materials used to produce them. One possible result, particularly with composites, is that the door will warp.

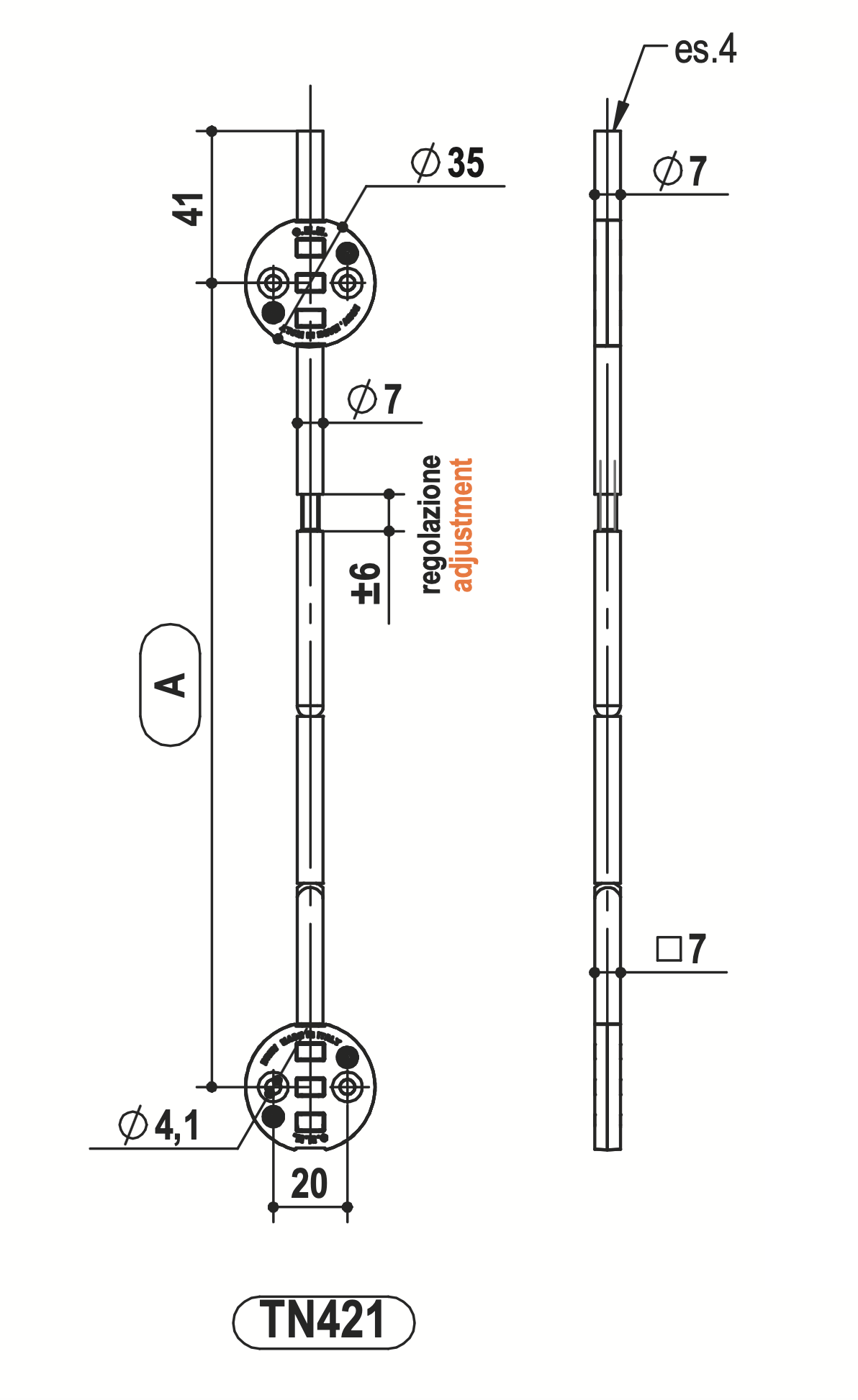

In Europe, where they have been making doors from thinner materials for some time, it is standard practice to reinforce with tensioner bars. Fortunately, Sugatsune has found a solution that prevents warping. The whole system can also be completely concealed. The TN421 is a tensioner bar that is adjusted with an Allen key from the top edge of the door. Info
The rod has a threaded sleeve section, which, when turned by a hex key from the end, applies tension to bring the door back to a straight and true position.
The TN421 cannot be cut down; adjustment is only by a few millimetres.
Door overall height has to be at least 60mm taller for the bar itself to fit.
Door Thickness Min: 12mm
Bar Size: 7mm
Cup Size: 35mm
Length Available: 1700mm, 2000mm, 2200mm, 2300mm, 2450mm, 2600mm, 2750mm
2600mm and 2750mm are on two weeks lead time
Cutting Depth: 7mm
Sold as a single unit.
Usually, two are required per door.
Other versions of straighteners are also available. Door Straightener Bars
