Sugatsune Concealed Straightener Bar for Large Doors

Sugatsune Concealed Straightener Bar for Large Doors

Large area where design has caused issues for installers is with the evolving trend for ever larger cabinet and wardrobe doors.
Larger doors, however, put a greater stress on the fittings and materials used to produce them. One possible result, particularly with composites, is that the door will warp.

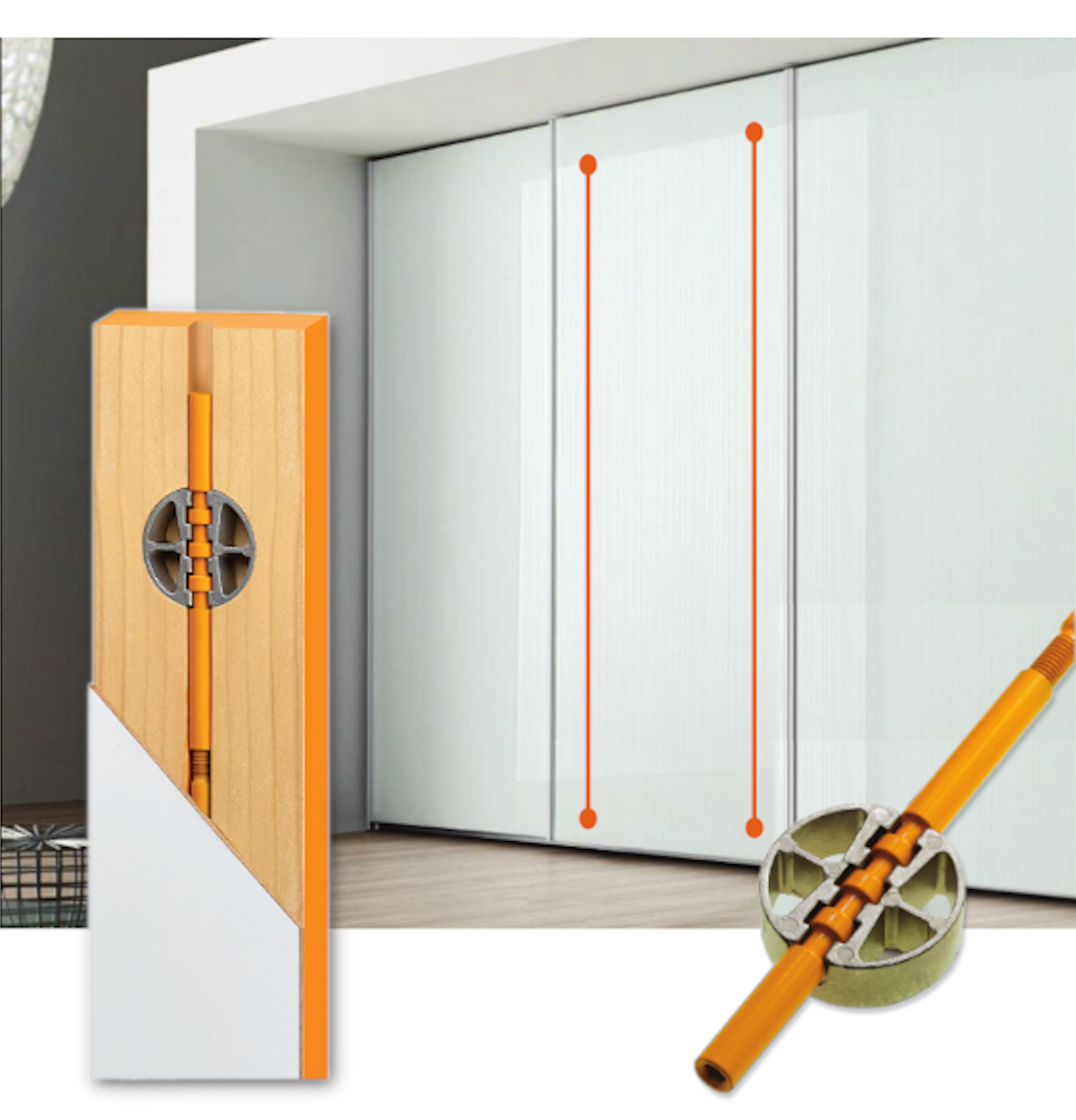

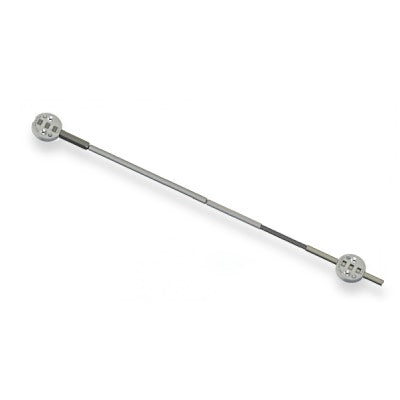

In Europe where they have been making doors from thinner materials for some time, it is standard practice to reinforce with tensioner bars. Fortunately, Sugatsune has found a solution that prevents warping. The whole system can also be completely concealed. The TN423 is a tensioner bar that is adjusted with an Allen key from the top edge of the door. Info

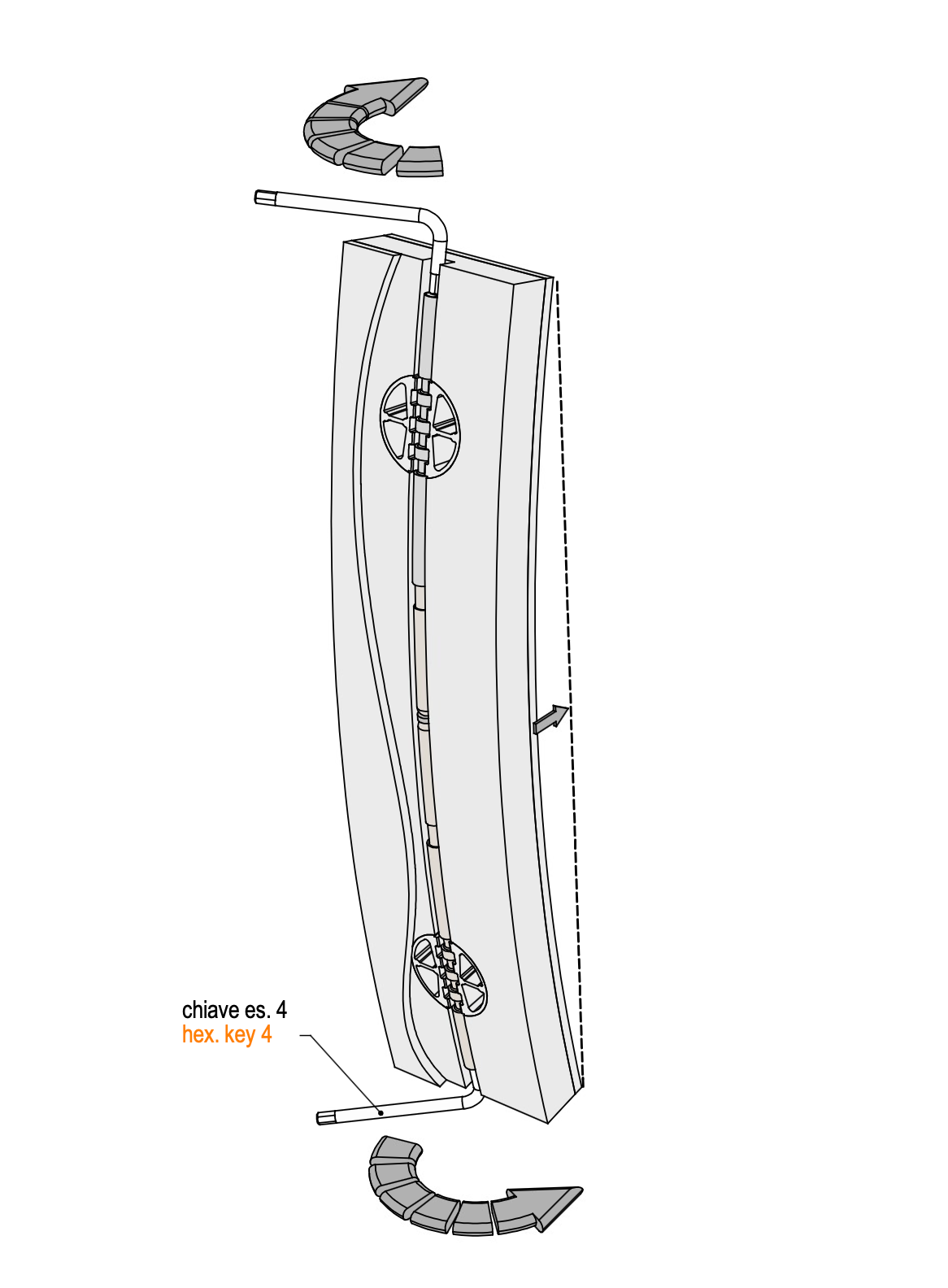

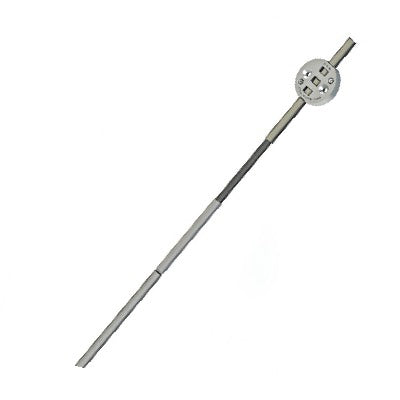

The rod has a threaded sleeve section, when turned by a hex key from the end applies tension or compression to bring the door back to straight and true. The TN423 can be cut down by 400mm so that one size can often be stocked to cover a wide range of differently sized doors.

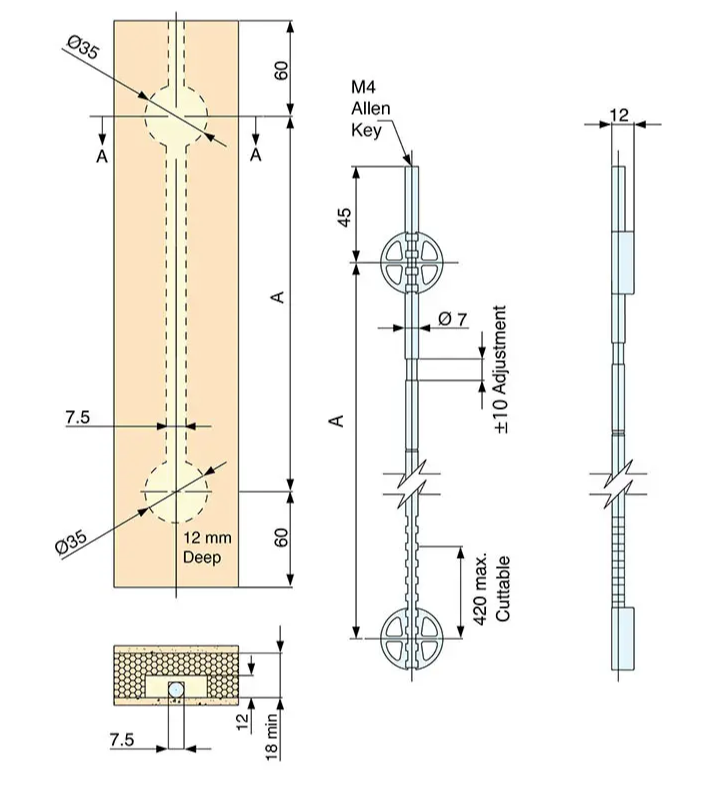

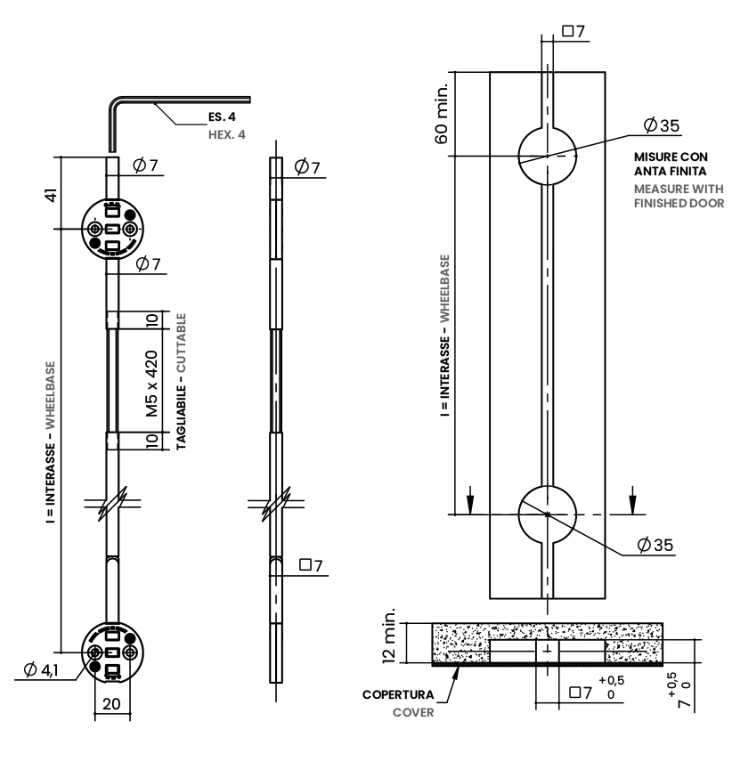

Door Thickness Min: 12mm
Bar Size: 7mm
Cup Size: 35mm
Length Available: 1500mm, 1900mm, 2300mm, 2600mm
     *1500mm suitable for door 1200mm-1600mm
     *1900mm suitable for door 1600mm-2000mm
     *2300mm suitable for door 1900mm-2400mm
     *2600mm suitable for door 2200mm-2700mm
Cutting Depth: 7mm
Bar Cutting: 420mm max
Sold as a single unit.

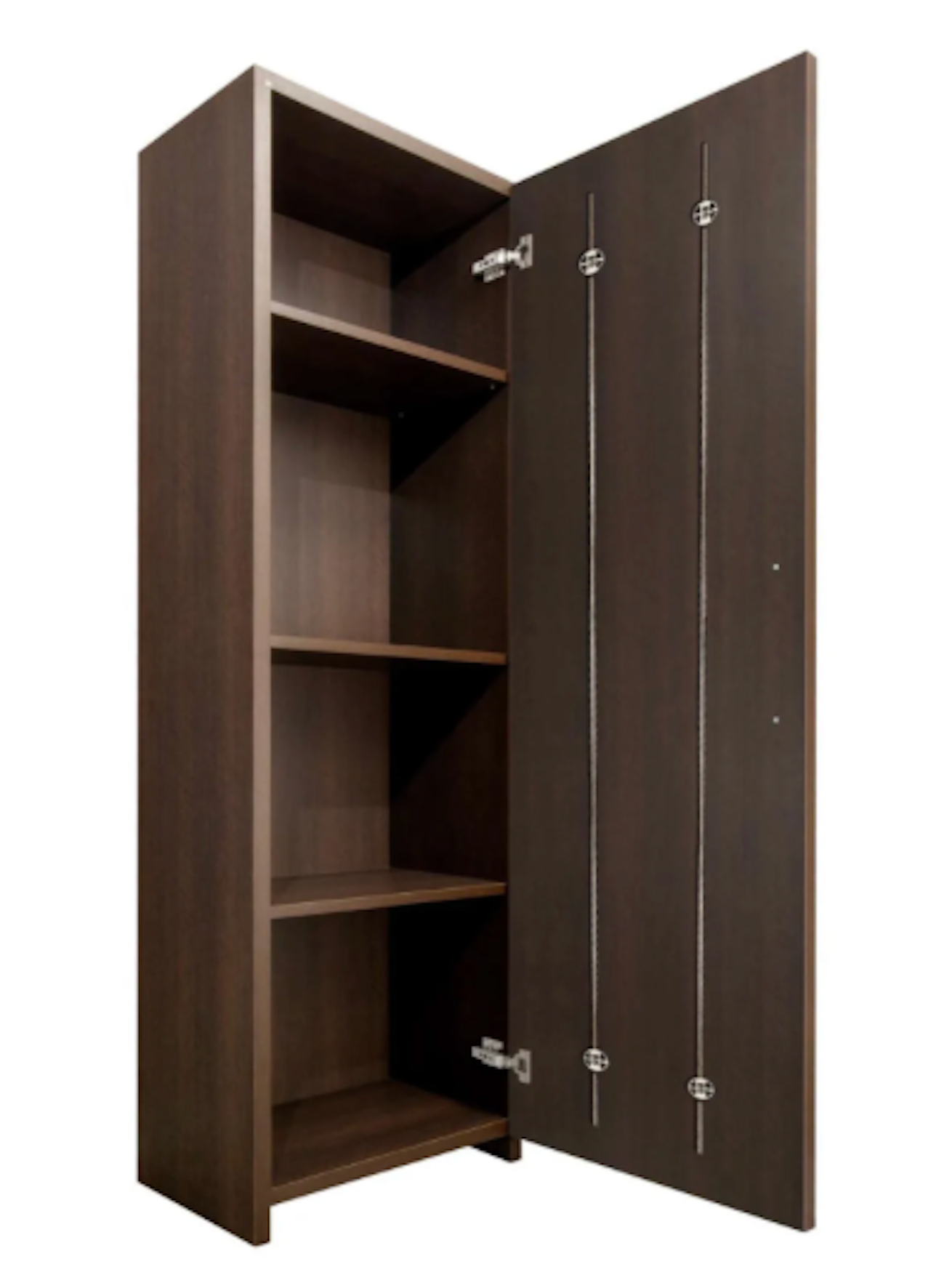

Usually two are required per door.
Other versions of straighteners are also available. Door Straightener Bars
