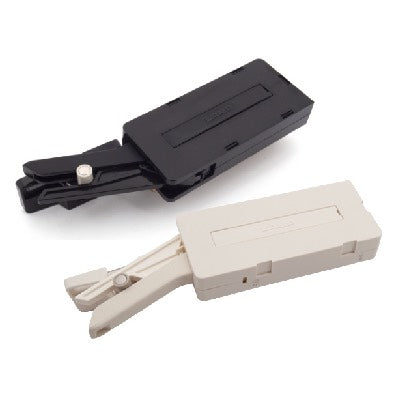

Sugatsune Lamp Soft Close Damper Catch for Heavy Doors
Damper and catch combination for sideways opening doors.
Prevents doors from slamming.
Holds doors in closed position.
Easy to install by simply aligning body with the interior wall.
Non-handed. Can be use Right or Left side
Can handle doors up to 40 kg.
Strike can be adjusted post-installation: horizontally ±5 mm, vertically ±4 mm.
Passed 50,000 open/close cycles in a private test.
Suitable for Door Width: 450-900mm
Door Height: >2400mm
Load Capacity: 25-40 kg

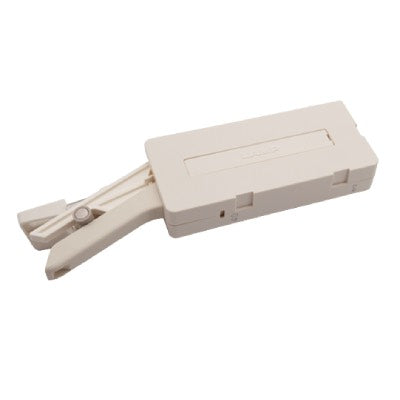

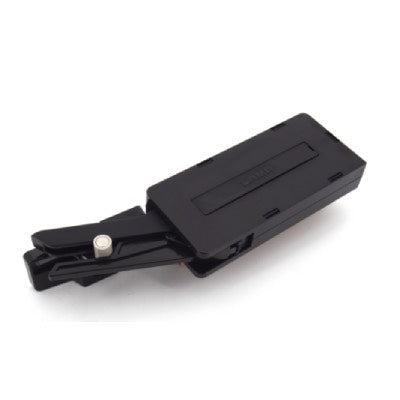

Finish: Available: White / Black
Material: ABS/Steel

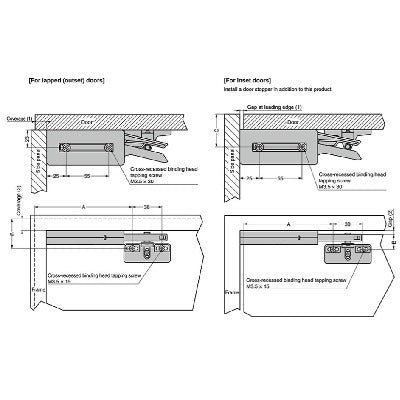

Suitable for Overlay and Inset Doors with J95 Hinges.
