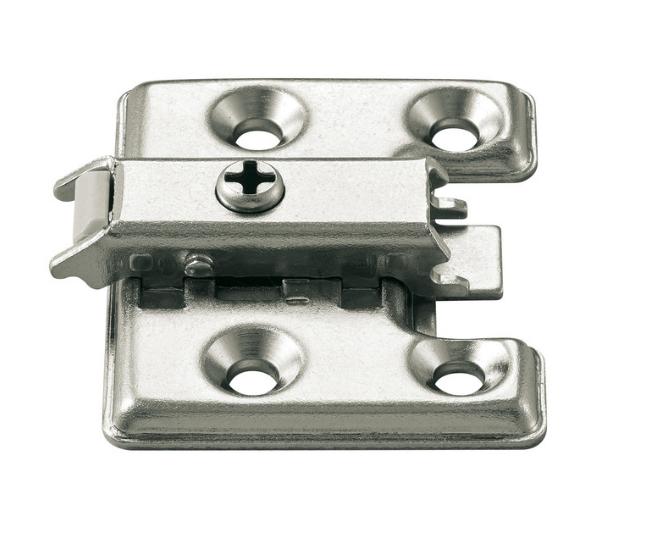

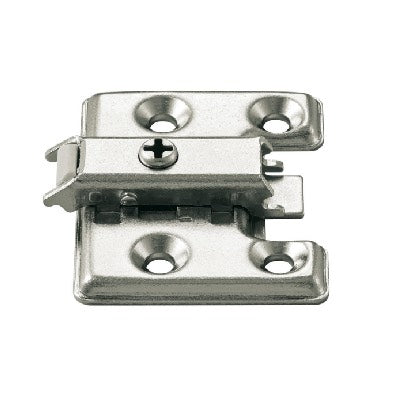

Sugatsune Mounting Plate Nickel Olympia 0mm Spacing 4H

Sugatsune Mounting Plate Nickel Olympia 0mm Spacing 4 Holes
Sugatsune 360-P6WT Medium Duty 0mm Mounting Plate
Suitable for: Olympia Series Hinges
Type: Hinge with 4 holes for heavier applications
Spacing: 0mm
Material: Steel
Finish: Nickel Plated
3-way adjustment function
Depth: +1.5/-2.5 mm
Vertical: +/- 3 mm
Horizontal: 0/-4 mm

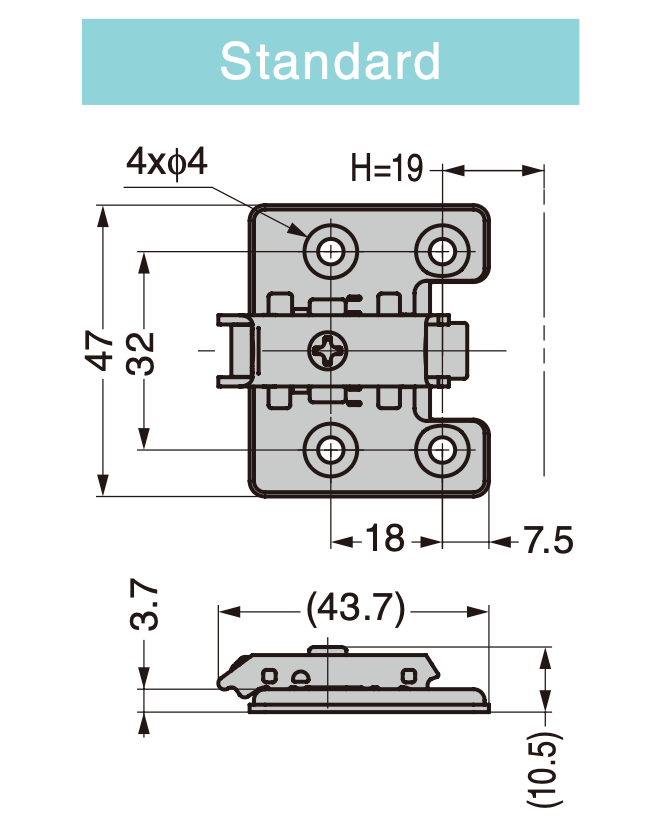

Size: 58 mm x 55 mm x 22 mm

For Sugatsune Olympia Concealed Hinges
Value of H for inset installation is "door thickness + 24 mm".
When using with the GH-360FP, value of H is "door thickness + 26 mm".

Alternative 360-P4W-32T available
