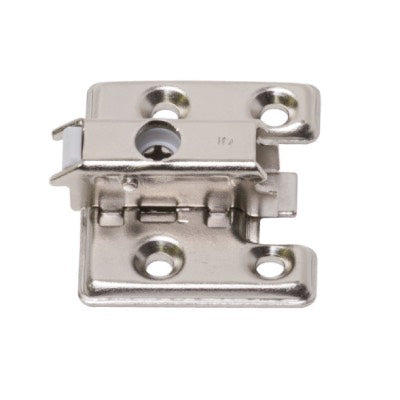

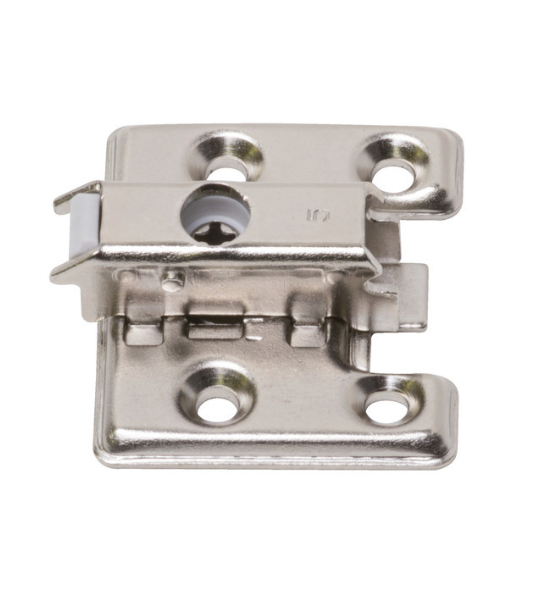

Sugatsune Mounting Plate Nickel Olympia 5mm Spacing 4H

Sugatsune Mounting Plate Nickel Olympia 5mm Spacing 4 Holes

Lead time 8-10 days
Sugatsune 360-P6WT Medium Duty 5mm Mounting Plate
Suitable for: Olympia Series Hinges
Type: Hinge with 4 holes for heavier door applications
Spacing: 5mm
Material: Steel
Finish: Nickel Plated
3-way adjustment function
Depth: +1.5/-2.5 mm
Vertical: +/- 3 mm
Horizontal: 0/-4 mm

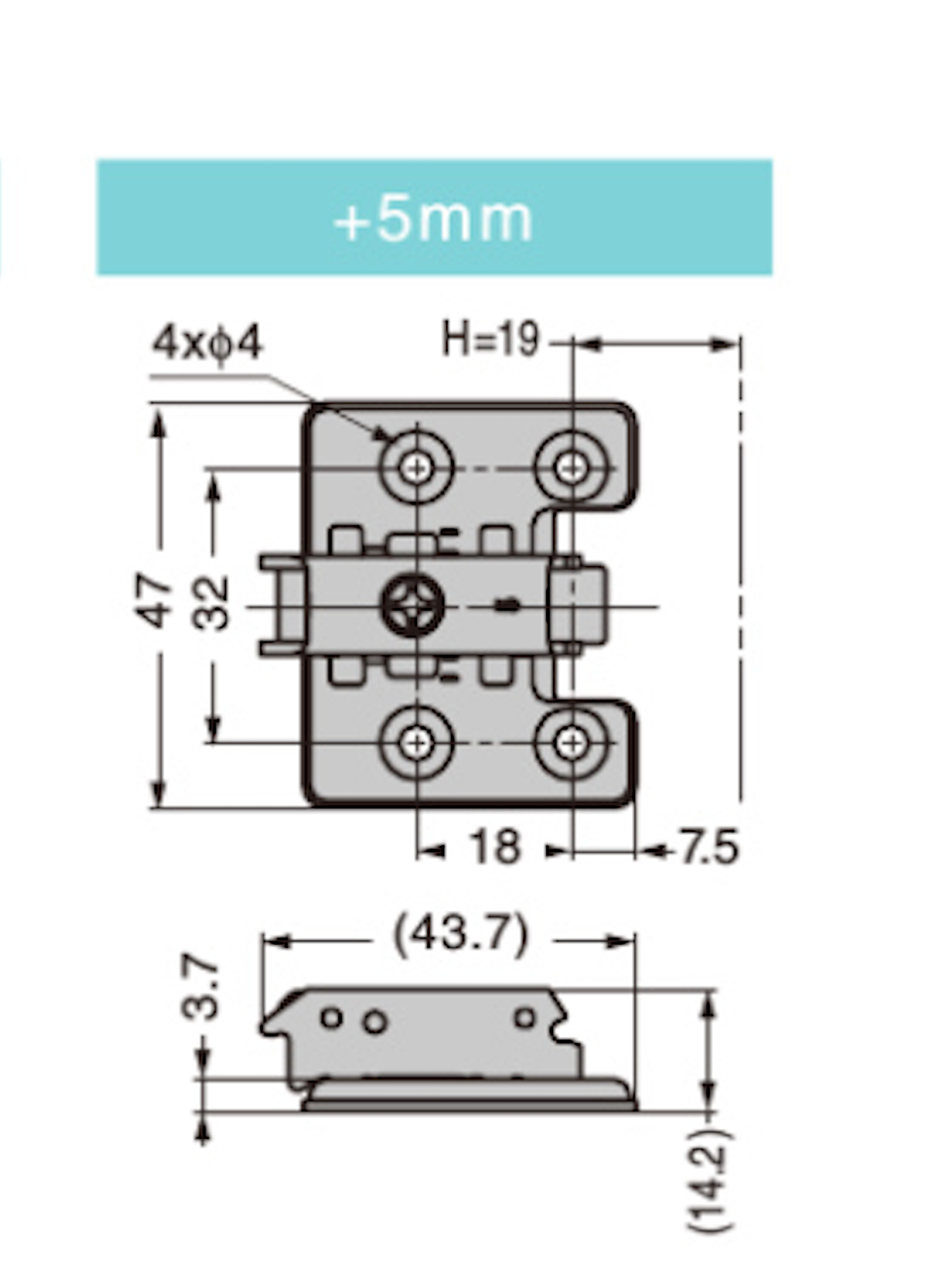

Size: 58 mm x 55 mm x 22 mm

For Sugatsune Olympia Concealed Hinges
Value of H for inset installation is "door thickness + 24 mm".
When using with the GH-360FP, value of H is "door thickness + 26 mm".

Alternative 360-P6WT available.
