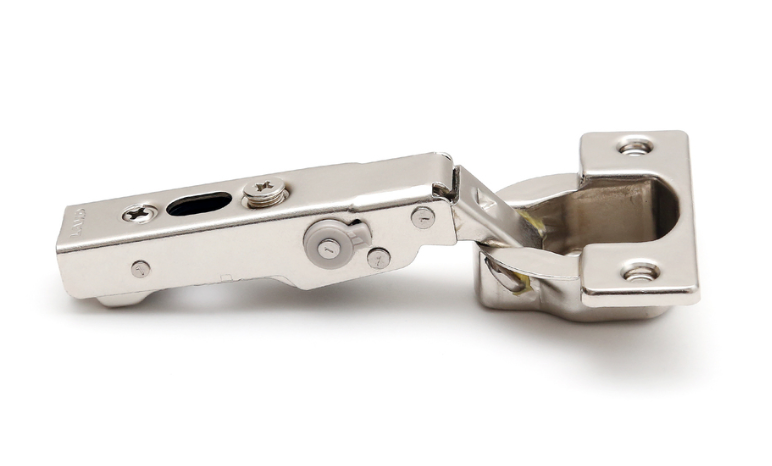

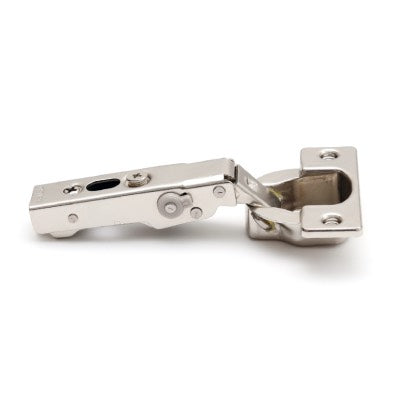

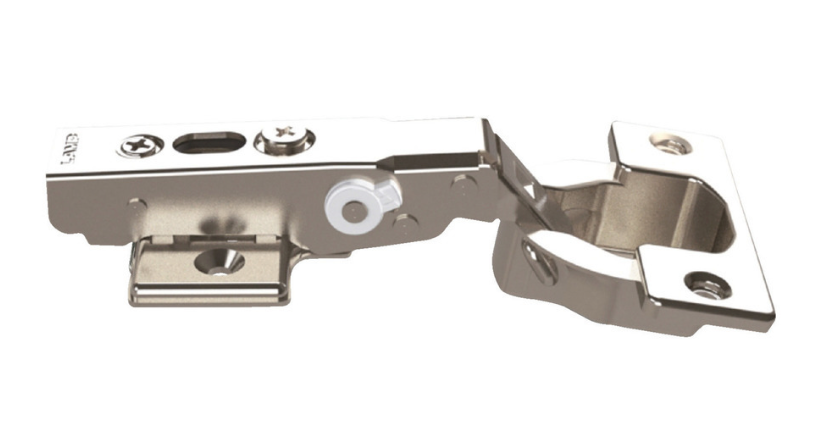

Sugatsune Soft-Close Full Overlay Thick Door Cabinet Hinge H360

Sugatsune Medium Duty Concealed Cabinet Sprung Hinge Full Overlay - 100°
Suitable for: Max door weight 6kg for 2 hinges, and 18kg on 4 hinges per door
Ideal for door thickness up to 34 mm, for wood, glass doors or metal
Version: Olympia
Material: Steel
Opening Angle: 100°
Type: Full Overlay

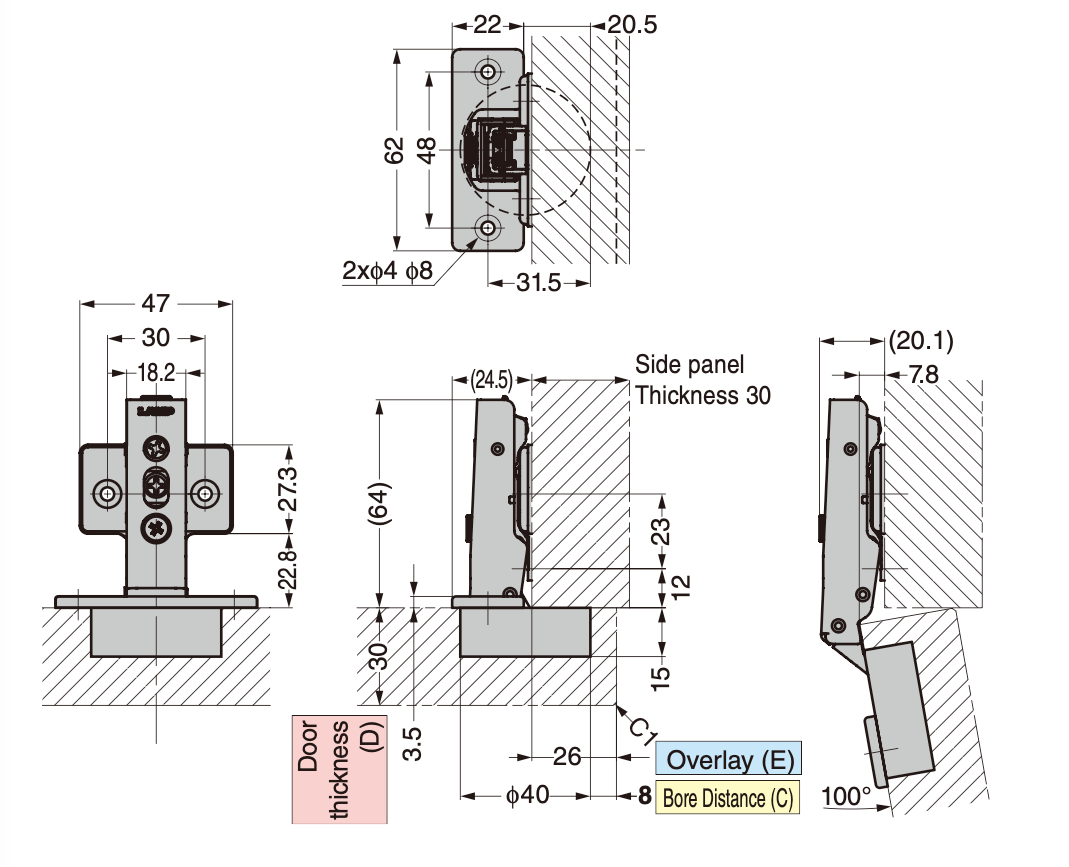

Overlay: 22-26 mm
Closing: Soft-Close with closing adjustment
Cup Diameter: 40 mm
Drilling Depth: 15mm
Finish: Nickel Plated
Minimum Door thickness: 18mm
3 Way adjustment:
Overlay Horizontal +0/-4mm, Vertical +/-2.5mm, Depth +1.7/-2.8mm, Tilting

Mounting/face plate NOT included, sold separately 360-P4W-30T
