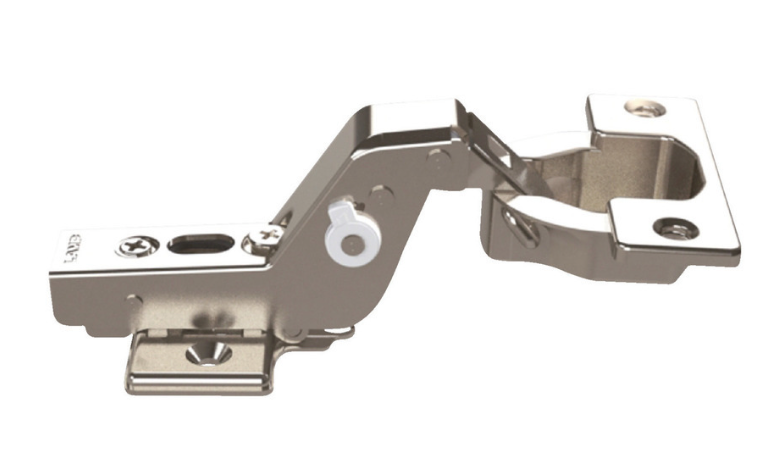

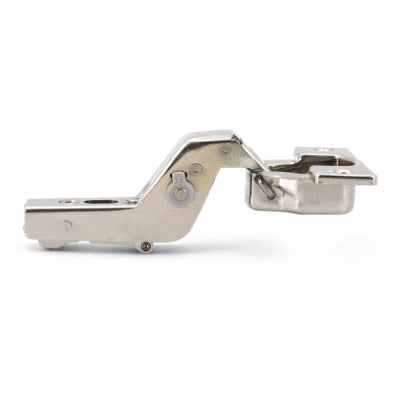

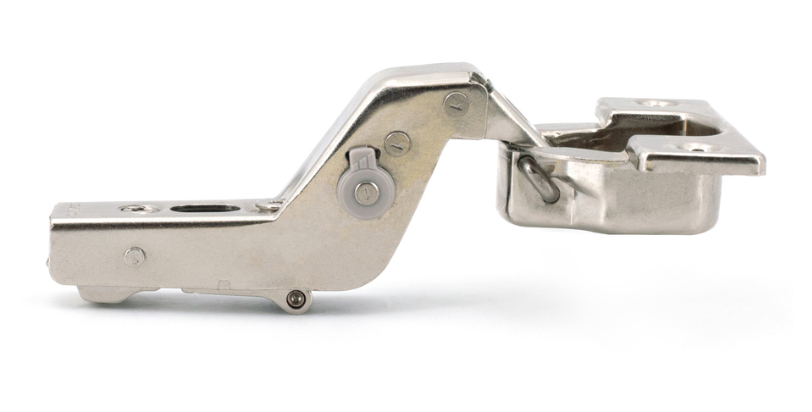

Sugatsune Soft-Close Inset Thick Door Cabinet Hinge H360

Sugatsune Olympia Medium Duty Concealed Clip On Cabinet Sprung Hinge Inset - 100°
Suitable: Max door weight 6kg for 2 hinges, and 18kg on 4 hinges per door
Ideal for door thickness up to 34 mm, for wood, glass or metal
Version: Olympia
Material: Steel
Opening Angle: 95°
Type: Inset
Closing Type: Soft-Closing with speed adjustment
Cup Diameter: 40 mm
Finish: Nickel Plated

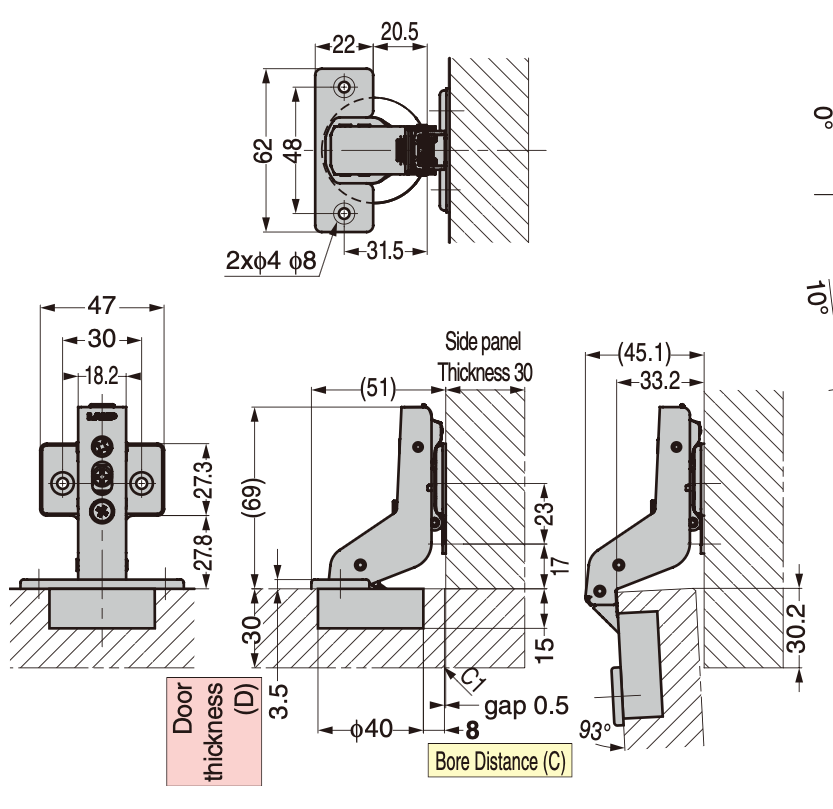

4 Way adjustment:
Overlay Horizontal +0/-4mm, Vertical +/-2.5mm, Depth +1.7/-2.8mm
Screws are recommended 3.5x15mm

Mounting/face plate NOT included, sold separately 360-P4W-30T
