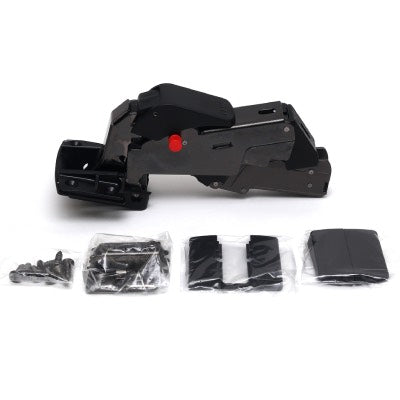

Sugatsune Soft Close Wide-Angle Black Heavy Duty Cabinet Hinge

Sugatsune Soft Close Wide-Angle Black Nickel Heavy Duty Cabinet Hinge - 160°
Suitable: Max door weight 25kg for 2 hinges, and 40kg on 3 hinges per door
Ideal for door thickness up to 36 mm, for wood or glass doors or metal
The built-in damper allows doors to close slowly providing premium door motion.
Comes with a mounting plate and screw covers.

Door Thickness: 18-36mm
Finish: Black Nickel
Material: Steel/Zinc Alloy
Opening Angle: 160°
Type: Full Overlay

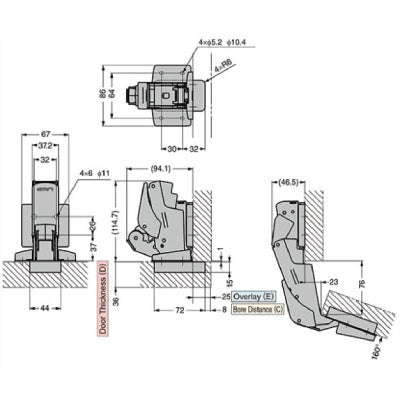

Overlay : 25 mm
Cup Diameter: 40 mm
3 Way adjustment:
Overlay Horizontal +0/-4mm,
Vertical +/-3mm,
Depth +1.5/-2.5mm,

Comes with a red holding pin which holds the hinge angle. Please do not detach it until the hinge is installed
Please do not open and close the hinge while the holding pin is attached.

Please Note: Item returned as NOT faulty will by subject to a restocking fee of 25%
