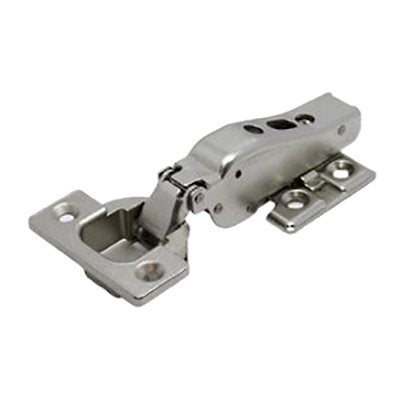

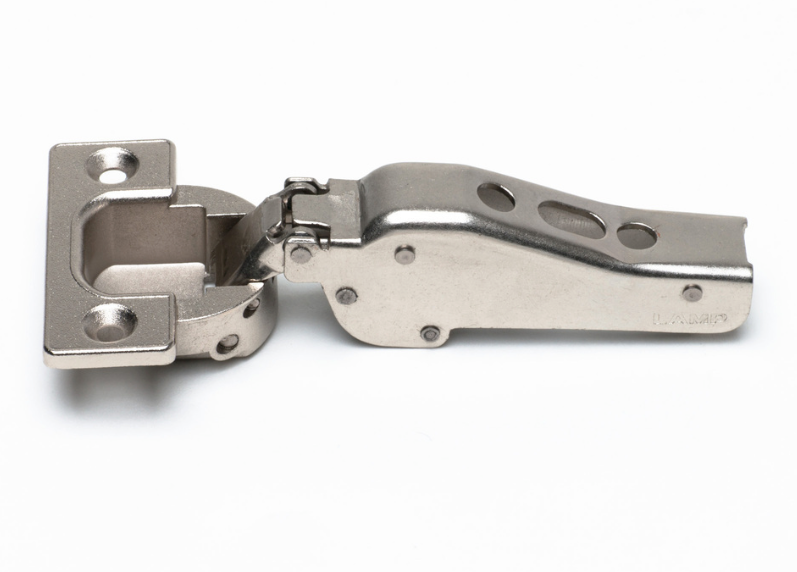

Sugatsune Sprung 5/8 Overlay Heavy Duty Cabinet Hinge J95-C24/16T

Sugatsune Heavy Concealed Duty Clip On Cabinet Sprung Hinge 5/8 Overlay - 95°
Suitable: Max door weight 25kg for 2 hinges, and 40kg on 3 hinges per door
Ideal for door thickness up to 34 mm, for wood or glass or metal
Opening Angle: 95°
Type: 3/4 Overlay
Overlay: 16 mm
Sprung, Clip On
Cup Diameter: 40 mm
Finish: Nickel Plated
3 Way adjustment:
Overlay Horizontal +0/-4mm, Vertical +/-3mm, Depth +1.5/-2.5mm

Mounting plate NOT included, sold separately J95-P6T
