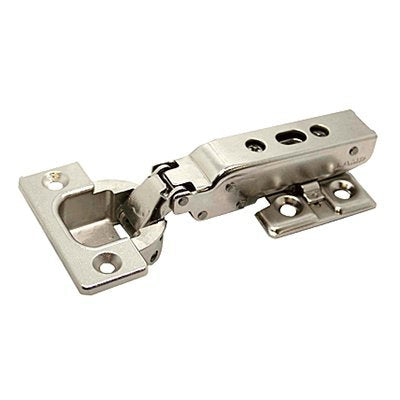

Sugatsune Heavy Duty UNSPRUNG Concealed Cabinet Hinge 95°

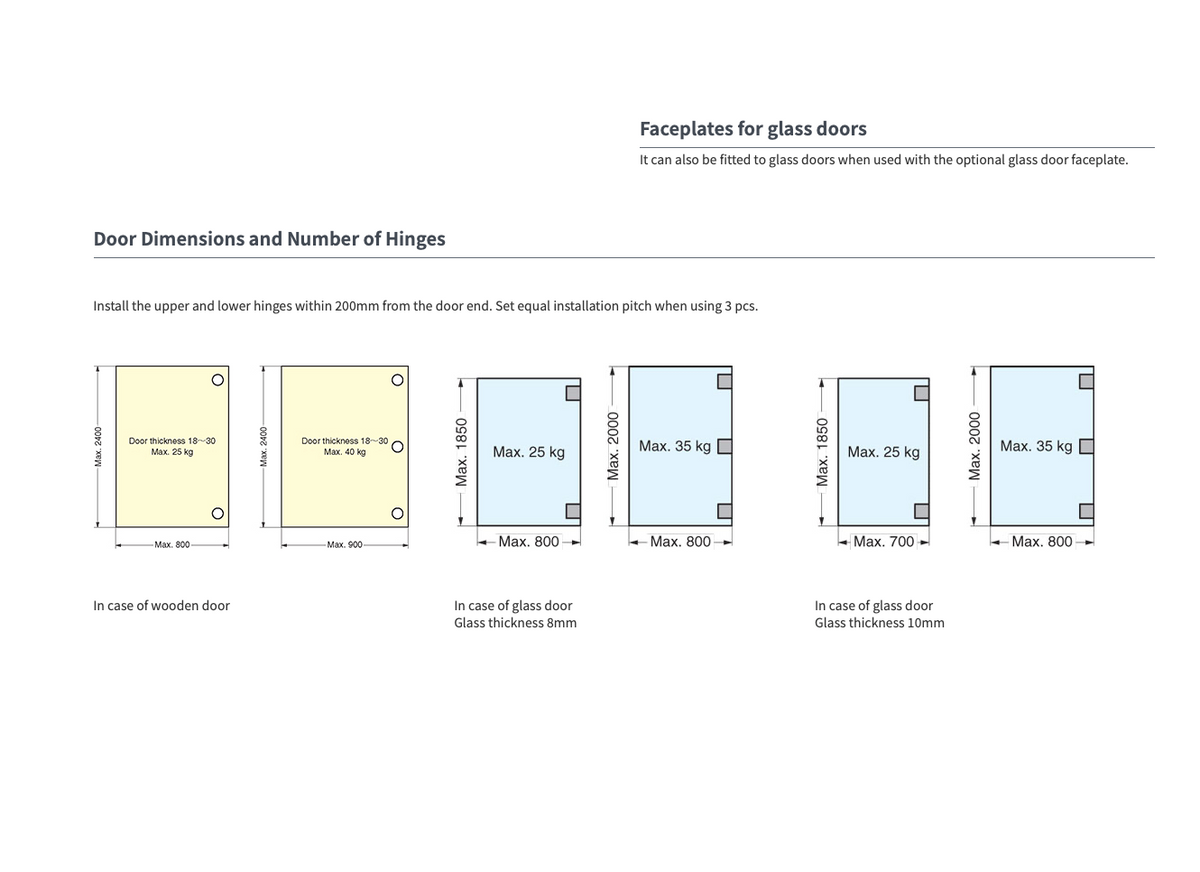

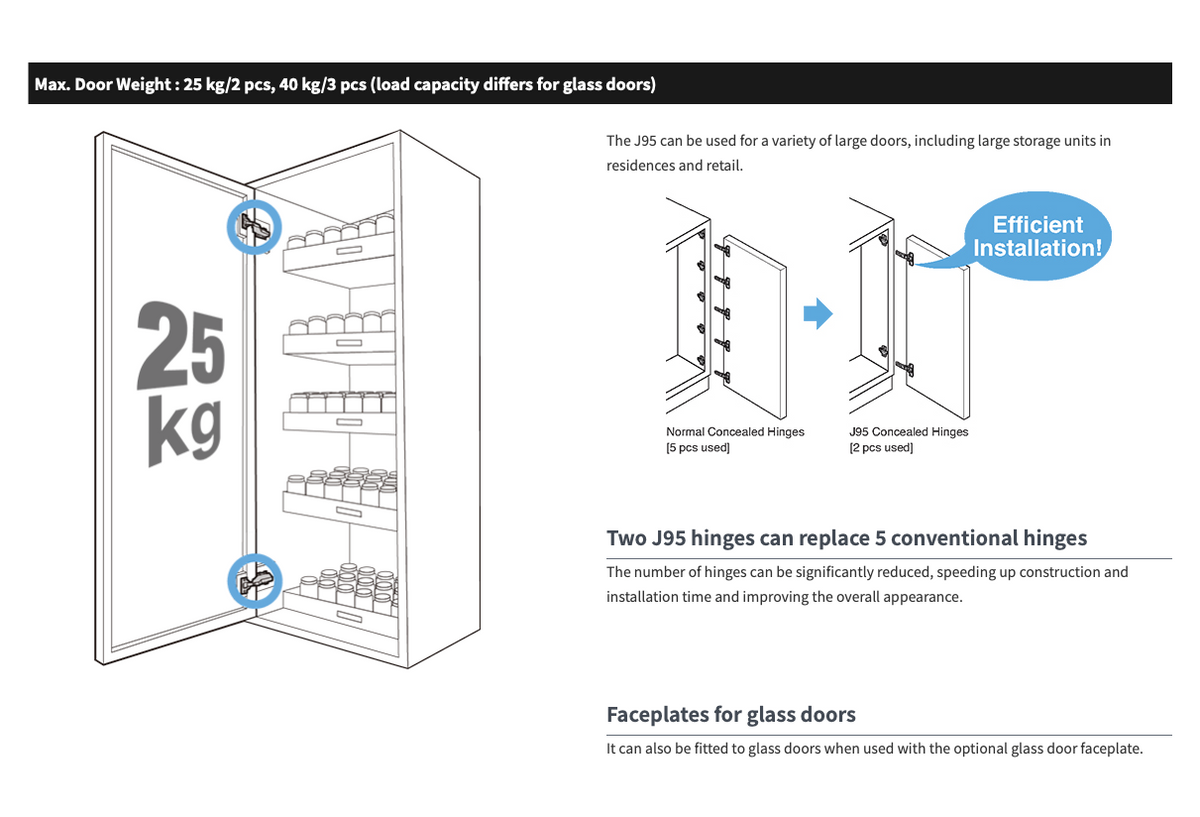

Suitable: Max door weight 25kg for 2 hinges, and 40kg on 3 hinges per door
Ideal for door thickness up to 34 mm, for wood or glass doors or metal
Finish: Nickel plated
Opening Angle: 95°

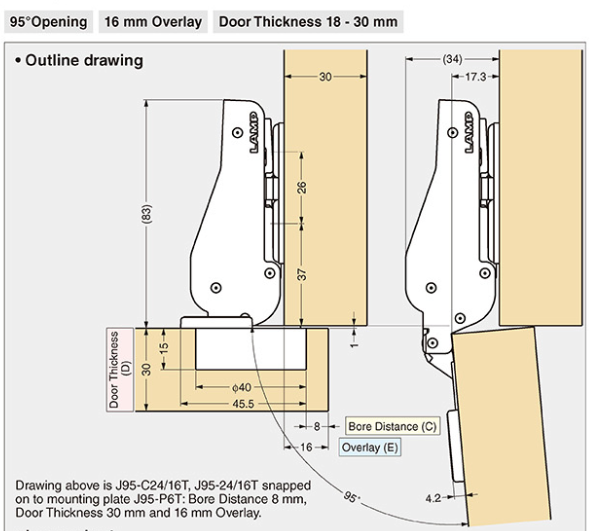

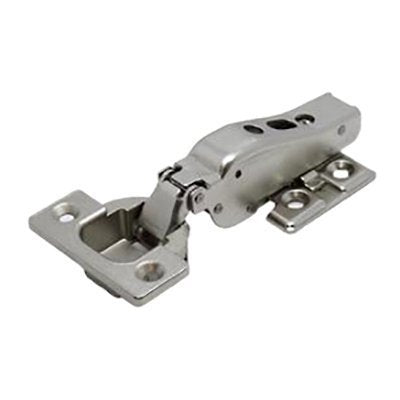

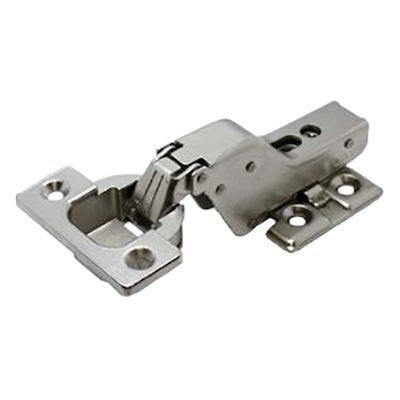

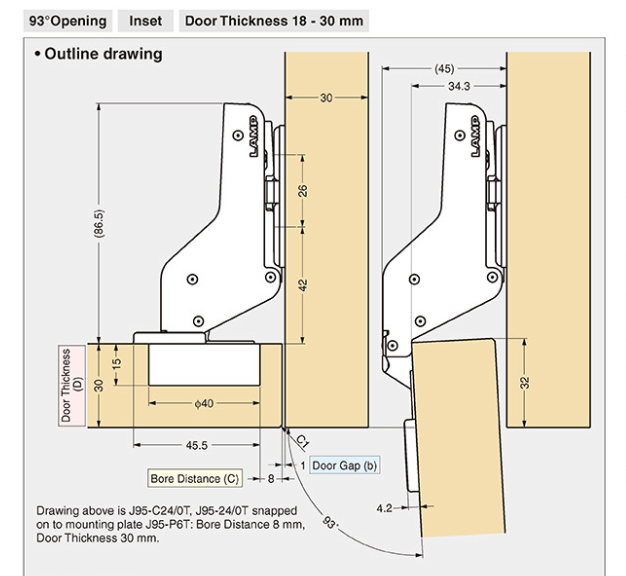

Type: Full Overlay/3/4 Overlay and inset

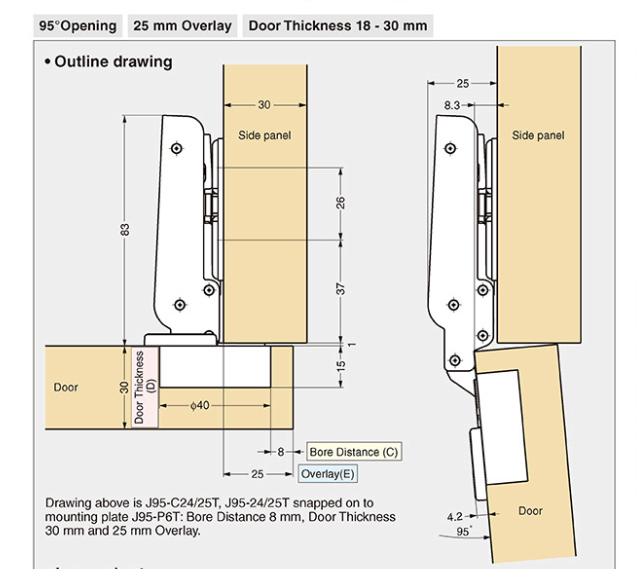

Overlay : 25 mm
Sprung, Clip On

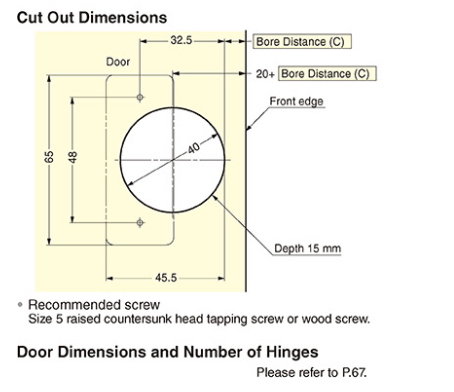

Cup Diameter: 40 mm
Finish: Nickel Plated

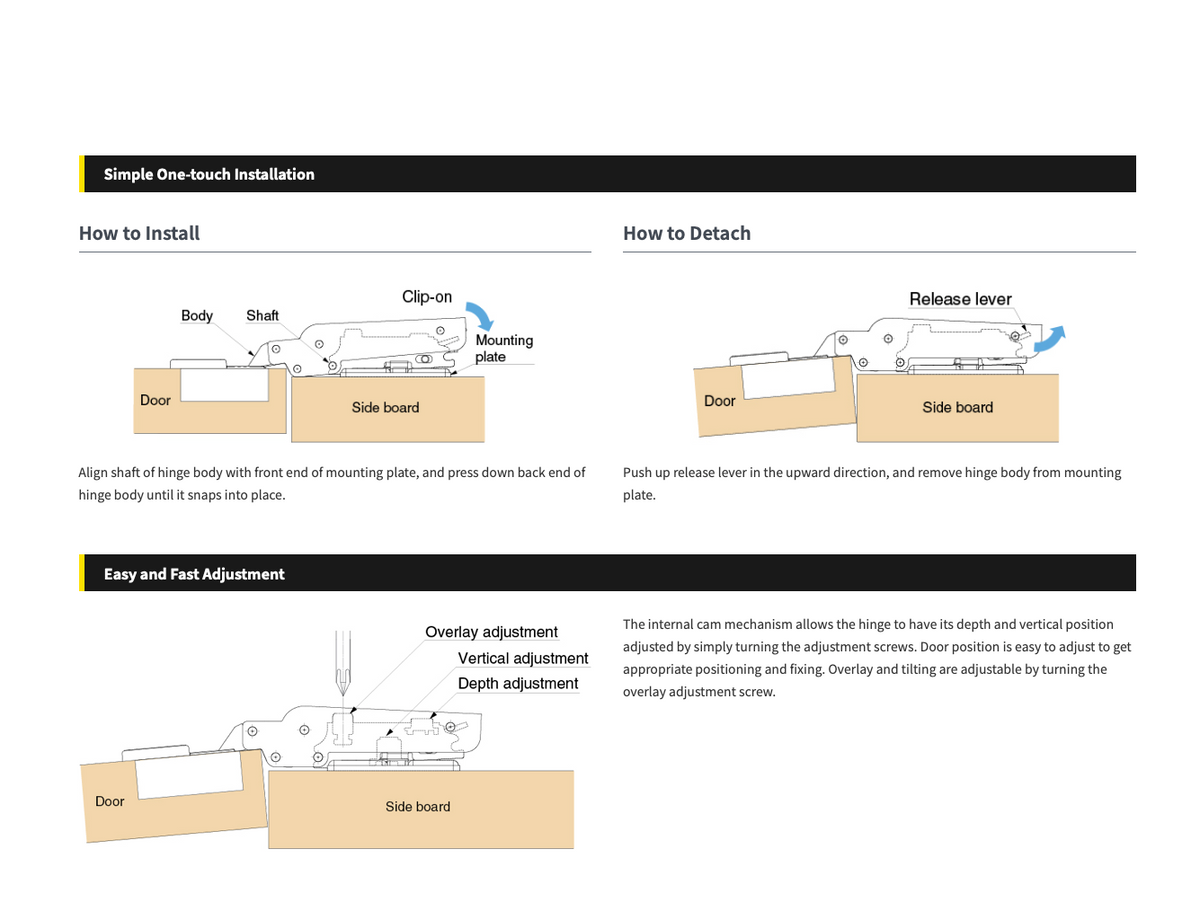

3 Way adjustment:
Overlay Horizontal +0/-4mm, Vertical +/-3mm, Depth +1.5/-2.5mm, Tilting
Mounting plate are NOT included, sold separately J95-P6T
