Tiomos Cruciform Mounting Plate 4 Euro Screws Fixing

Tiomos Cruciform Mounting Plate 4 Euro Screws Fixing.

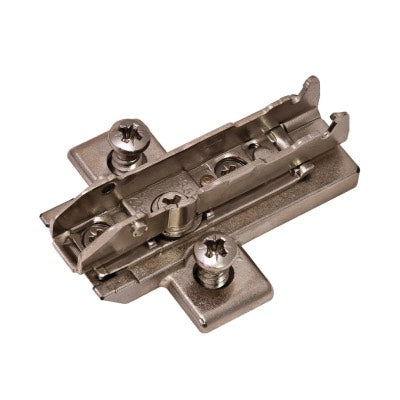

Tiomos Cruciform Mounting Plate Euro-Screws
The mounting plate is used to attach the Tiomos hinge to the furniture body.
In this way, the furniture door can be easily installed and removed if necessary.

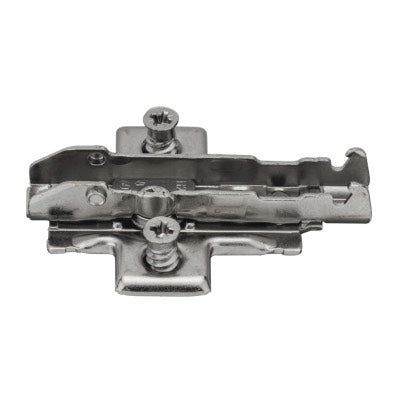

Grass Mounting Plate Cruciform 4 Point Fixing Tiomos Click On System Hinges
Application: For TIOMOS click on fixing hinges only
Version: Two part plate with ± 2 mm height adjustment via worm screw
Distance/Spacing: 0mm, 2mm, 3mm
Material: Steel
Colour/finish: Nickel
For drill hole Ø 5 mm
Drilling depth: 12 mm
Screw length: 13.5 mm
Screw distance: 32 mm
Edge distance: 37 mm
Adjustment facility:
In addition Height adjustment Via worm gear ±2 mm
Side adjustment ±2 mm
Depth adjustment ±2 mm
Mounting plate version: For screw fixing with pre-assembled Euro screws

Finally, order Hospa screw and dowel fixing or wood versions available from other listing Hafele
