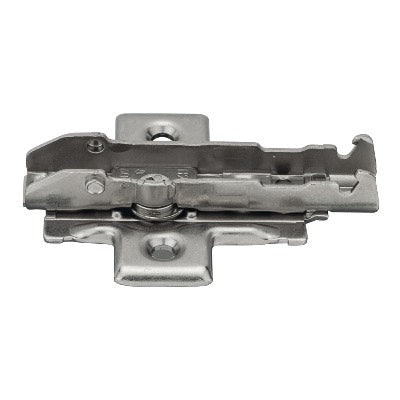

Tiomos Cruciform Mounting Plate 4 Wood Screw Fixing

Tiomos Cruciform Mounting Plate 4 Wood Screw Fixing.

Tiomos Cruciform Mounting Plate 4 Wood offers great scope in furniture construction.
In addition, the mounting plate is used to attach the Tiomos furniture hinge from Grass to the furniture body.
The Tiomos furniture tape is clipped onto the base plate using clipping technology.
In this way, the furniture door can be easily installed and removed if necessary.

Grass Mounting Plate Cruciform 4 Point Fixing Tiomos Click On System Hinges
Application: For TIOMOS click on fixing hinges only
Version: Two part plate with ± 2 mm height adjustment via worm screw
Distance/Spacing: 0mm, 2mm, 3mm
Material: Steel
Colour/finish: Nickel
Type: Wood screws countersunk -3.5mm Hinge Screws 4.0 x 15 mm
Screw distance: 32 mm

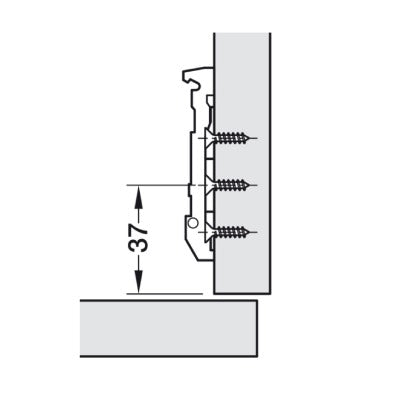

Edge distance: 37 mm
Adjustment facility:
In addition Height adjustment Via worm gear ±2 mm
Side adjustment ±2 mm
Depth adjustment ±2 mm
Mounting plate version: For screw fixing with wood screws
Model: Tiomos
Material: Steel
