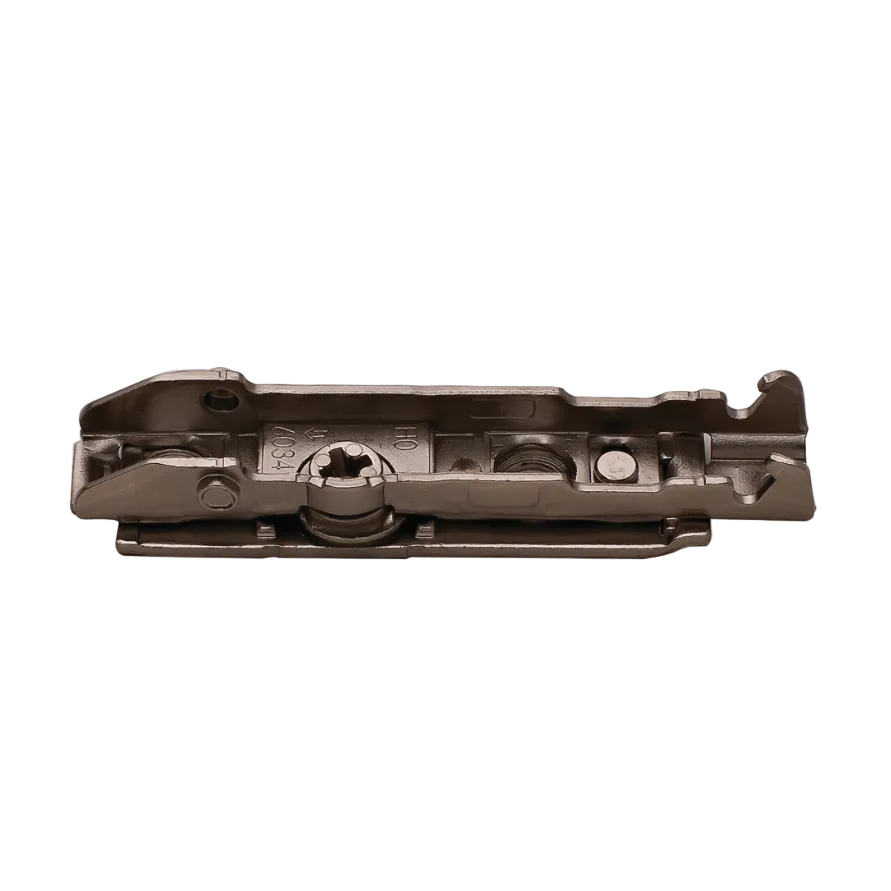

Tiomos Inline Mounting Plate for Wood Screw Anthracite

Tiomos Inline Mounting Plate 4 Wood Screw Fixing Anthracite

Tiomos Inline Mounting Plate for Wood offers great scope in furniture construction.
The Tiomos furniture hinge is clipped onto the base plate using clipping technology.
In this way, the furniture door can be easily installed and removed if necessary.
Grass Mounting Plate Inline 4 Point Fixing Tiomos Click On System Hinges
Application: For TIOMOS click on fixing hinges only
Version: Two part plate with ± 2 mm height adjustment via worm screw
Distance/Spacing Available: 0mm, 2mm, 3mm
Model: Tiomos
Material: Steel
Colour/finish: Tioms Night-Anthracite
Type: Wood screws, countersunk -3.5mm Hinge Screws 4.0 x 15 mm
Screw distance: 32 mm
Edge distance: 29 mm
Adjustment facility:
In addition Height adjustment Via worm gear ±2 mm
Side adjustment ±2 mm
Depth adjustment ±2 mm
Mounting plate version: For screw fixing with wood screws
