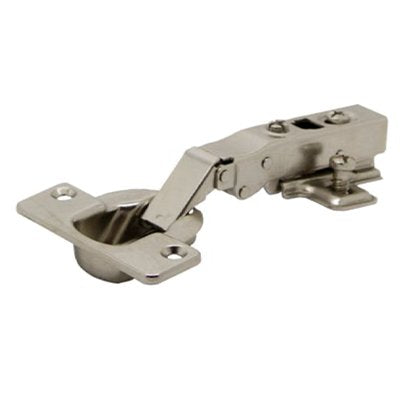

Tutti H56 Soft Close 95° Full Overlay 40 mm Cup Size Cabinet Hinge

Tutti H56 Soft Close 95° Full Overlay 40 mm Cup Size Cabinet Hinge

Tutti Cabinet Hinge Soft Close Full Overlay Large Door  40 mm cup Size
Designed for use on thick doors, it can cover side panels measuring more than 25mm.
Overlay Adjustment: +/- 3 mm
Opening Angle: 93 degree
Door Thickness: 16 - 40 mm
Cup Diameter: 40 mm
Cup Drilling Depth: 13 mm
Hinge Type: Clip On
Material: Steel
Finish: Nickel Plated
Soft Closing: Yes
Adjustment: 3-way

Plates are NOT included. Available on plate listing Tutti Plates
