Cabinet Pocket Pivot Sliding Door Gear Accuride 1321.

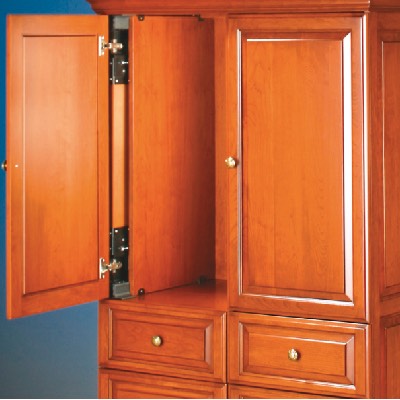

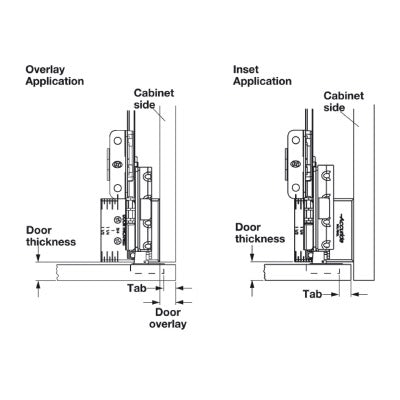

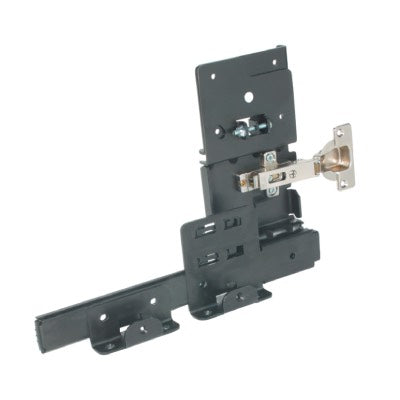

Revitalize your cabinets with this pocket sliding door. Pocket Pivot-Sliding Runners Accuride-1321 supports inset and 3/4 full-overlay with an auto-open feature. Accuride 1321 is a heavier and effective Pivot Sliding Door Gear. 1321 Ideal for vertical and horizontal pocket doors on entertainment centres, walls units, and cabinets in residential and commercial applications Slide rollers run across the back of the doors allowing for the use of sculptured doors, applied mouldings, or raised panels Auto open feature pushes cabinet doors open the last 32 mm of travel Anti-sag adjustment feature allows for the vertical adjustment of the door, assuring smooth opening and closing Suitable For vertical, overlay or inset Maximum allowed door weight: 14kg Maximum door height: 1060mm Maximum recommended door width: 610mm Door thickness: 19-38mm Material: Steel Finish: Black

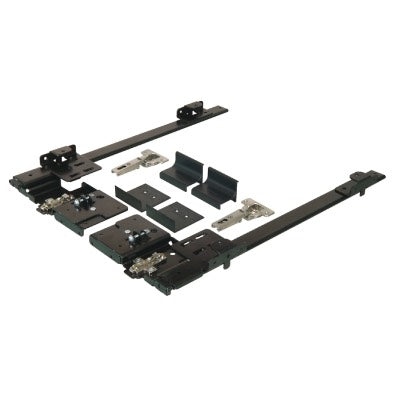

Pocket Pivot-Sliding Runners Accuride-1321 Set consists of: 1 pair of runners 2 mounting brackets 2 concealed hinges (40 mm) 2 mounting plates Fixing material Hinge Carrier Not Supplied and Should be Made on Side
