Concealed Adjustable Medium Sugatsune HES3D-120 Door Hinge

Concealed Adjustable Medium Sugatsune HES3D-120 Door Hinge

3D Concealed medium-duty door hinge for up to 40kgs.

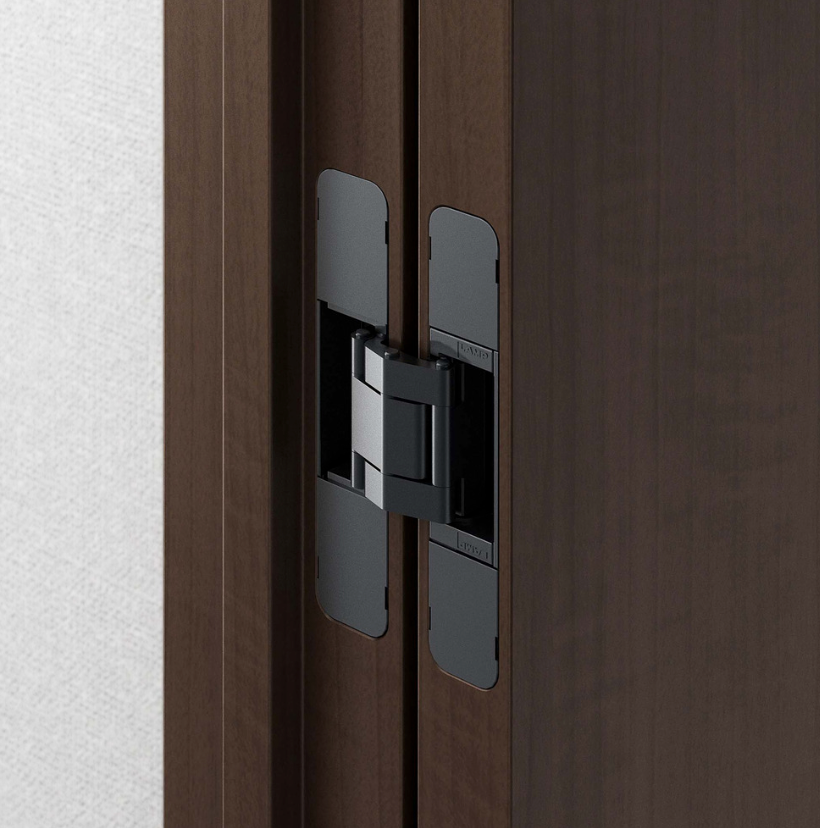

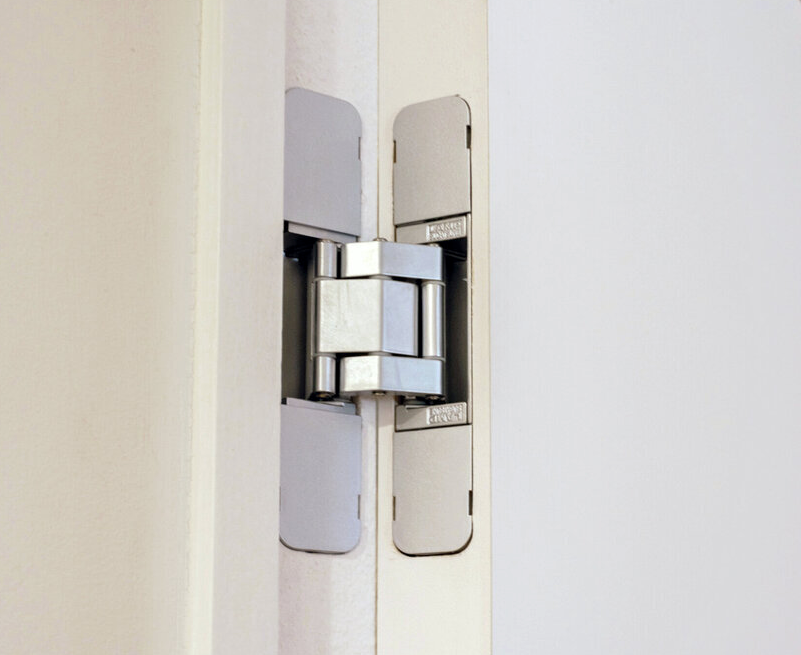

Concealed door hinges, also known as hidden or invisible hinges, offer a seamless solution for doors. Concealed hinges are installed within the door and frame, providing a clean and minimalist look. The primary advantage of concealed door hinges lies in their ability to enhance the aesthetic appeal of doors by eliminating visible hardware.
Concealed medium-duty hinge for quality timber doors, steel or glass.
Concealed Hinge from Sugatsune, designed for easy installation and a sleek, hidden look, perfect for high-end furniture and architectural projects. Perfectly suitable for cabinet doors. This award-winning hinge offers 3-way adjustment and exceptional durability, having passed a 50,000 open/close cycle test

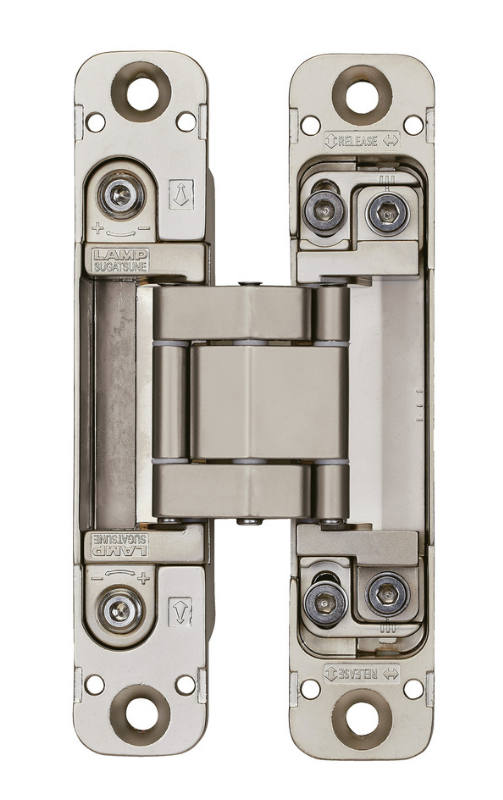

For doors 29mm thick, the hinge will give 180º opening, adjustment bolts are concealed behind front covers which slip on and off easily.
You may require 2 of 3 hinges, depending on the weight of the door.
Overall Hinge Height: 120mm
Hinge Thickness: 20mm
Hinge Width: 25mm
Min Door Thickness: 29mm
Maximum door width: 900mm
Maximum door height: 2400mm
Door Weight: 30kg for 2 hinges & 40kg for 3 hinges
Material: Zinc Alloy

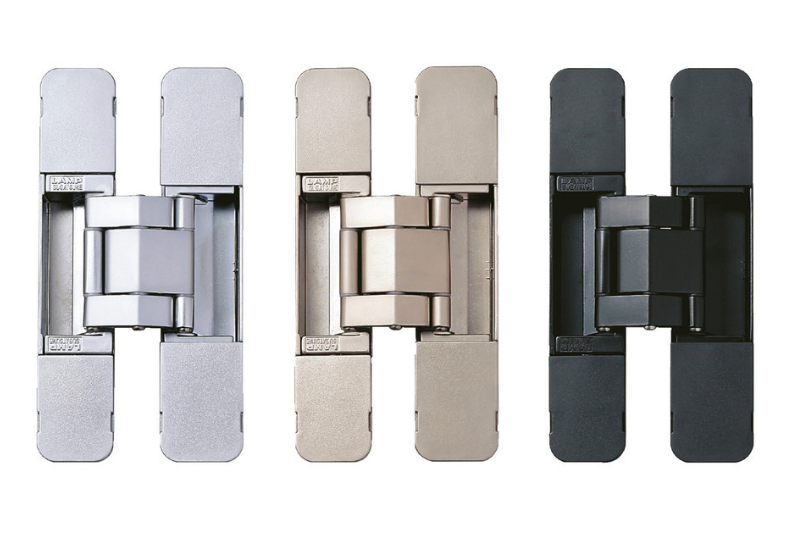

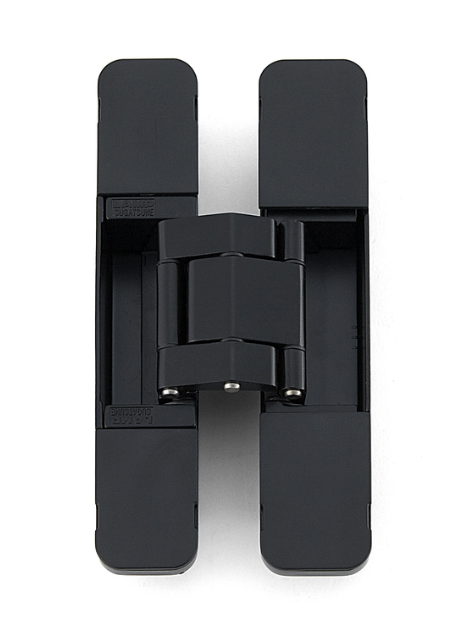

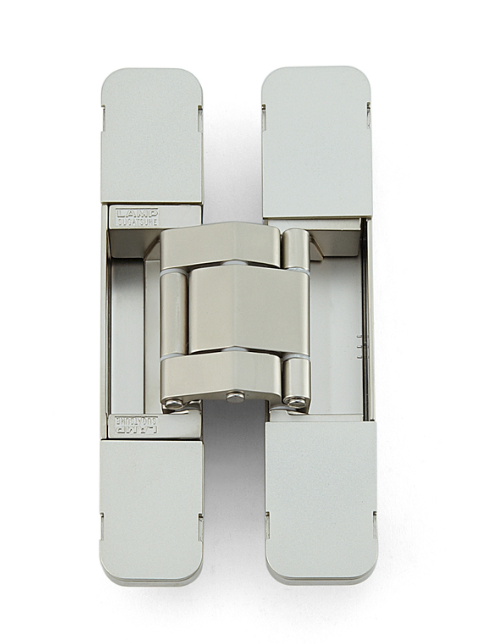

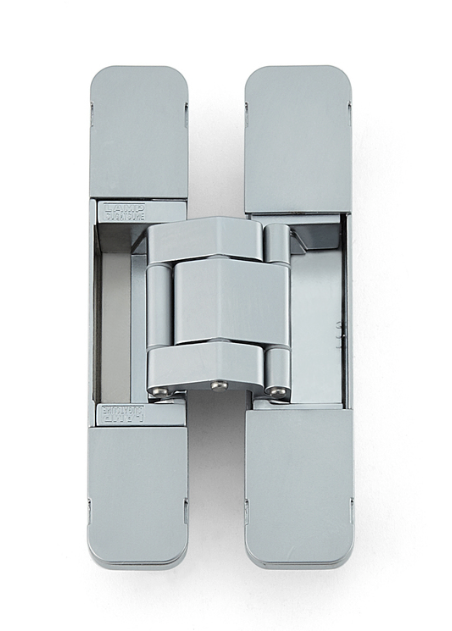

Finish: Black, Champagne Gold, Silver
Opening Angle: 180 Degrees
Pack: One Hinge, including Screws and cover plates

Other HES 140 Heavy Duty available.

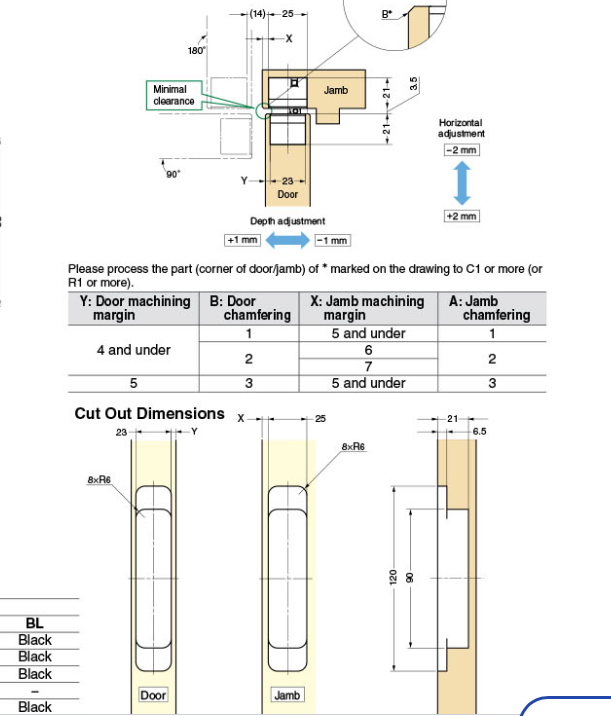

Instruction info available to download.
Recommended for use with the compatible door damper/door closers: LDD-S and LDD-V
Those hinges can be used with a glass door; you need to use a suitable door bracket HES3D-G120BKT
