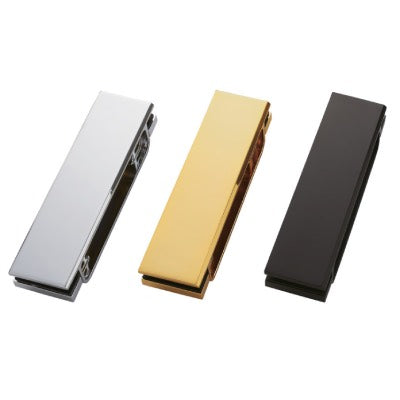

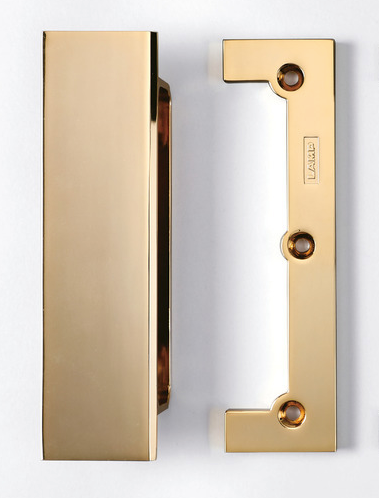

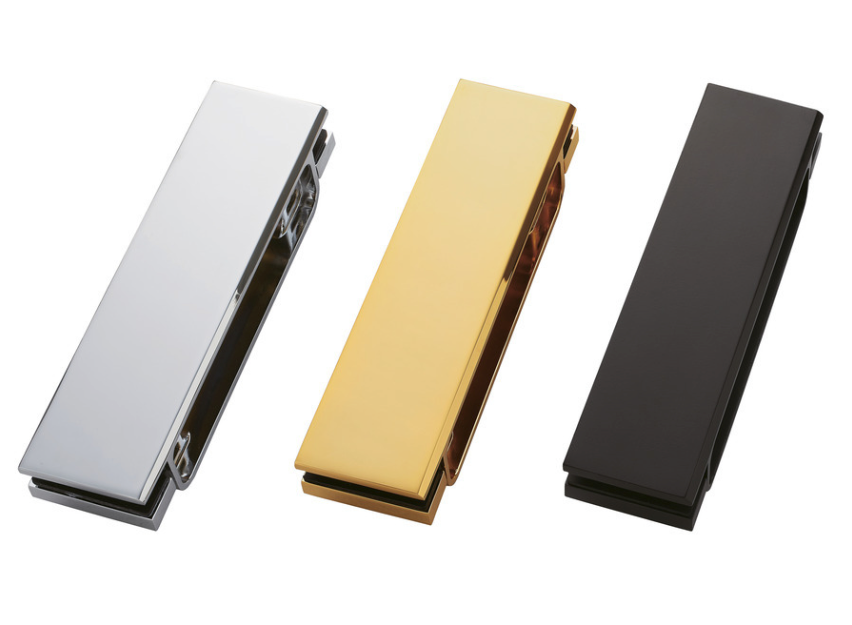

Glass Bracket for Concealed Adjustable Sugatsune HES3D-120 Door Hinge

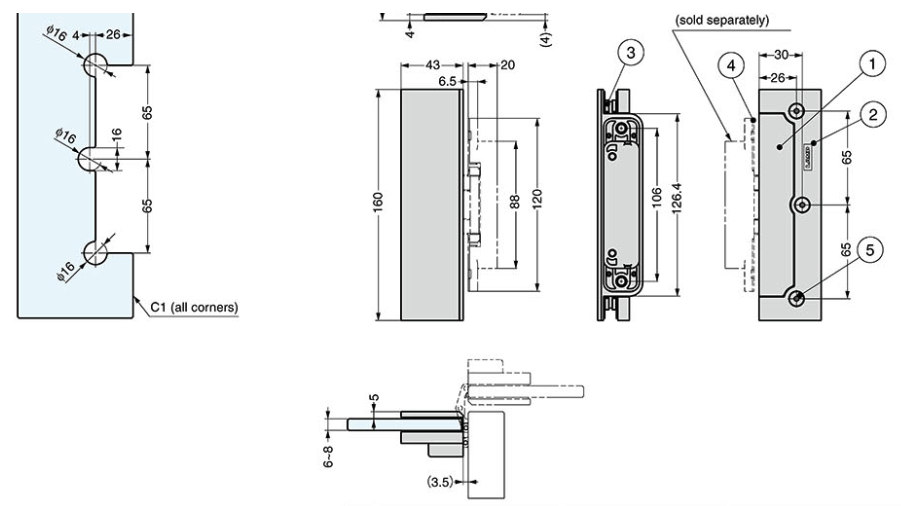

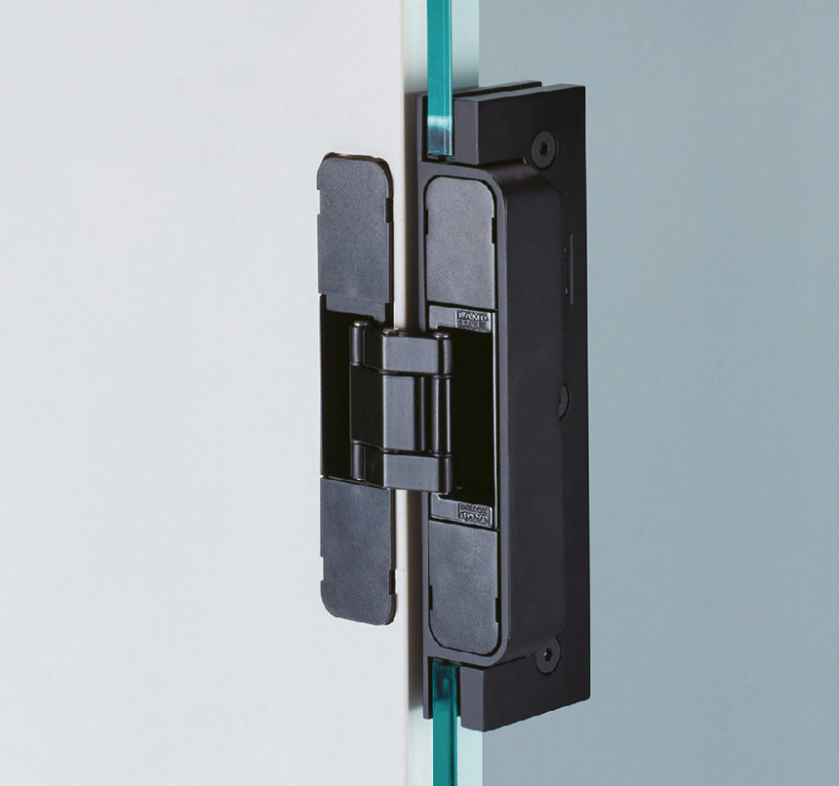

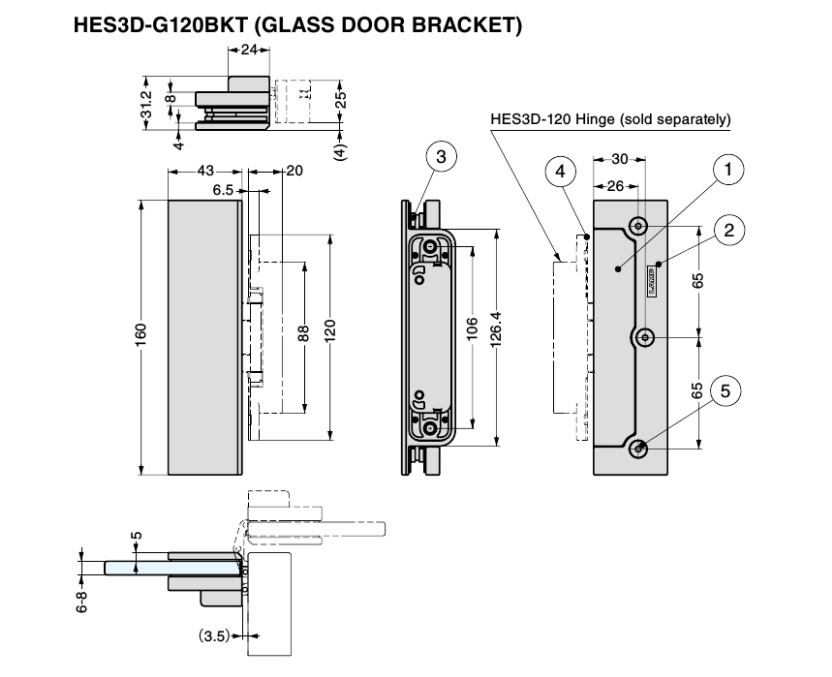

Concealed door hinges, also known as hidden or invisible hinges, offer a seamless solution for doors. Concealed hinges are installed within the door and frame, providing a clean and minimalist look. The primary advantage of concealed door hinges lies in their ability to enhance the aesthetic appeal of doors by eliminating visible hardware. Concealed medium-duty hinge for quality timber doors, steel or glass. Enhance your glass door installation with the durable and stylish HES3D-G120BKT glass door bracket, designed for seamless functionality and modern aesthetics. This bracket in collaboration with the oval 3-way adjustable ultra flush hinge, will allow fitting of glass doors. Dedicated to room dividing or entrance doors, secret doors and office entry. For doors 6-8mm thick, the hinge will give 180º opening, adjustment bolts are concealed behind front covers, which slip on and off easily. You may require 2 or 3 hinges, depending on the weight of the door. Overall Bracket Height: 160mm Bracket Thickness: 31mm Bracket Width: 43mm Glass Thickness: 6-8mm Maximum door width: 750mm Maximum door height: 2000mm Door Weight: 30kg for 2 hinges & 40kg for 3 hinges Material: Zinc Alloy Finish: Black, Gold, Chrome

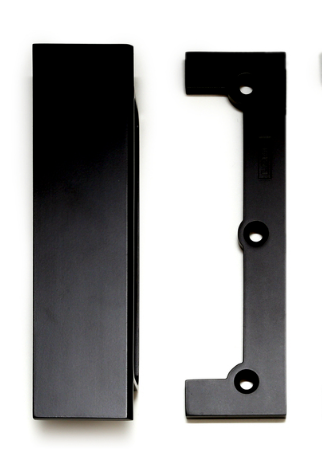

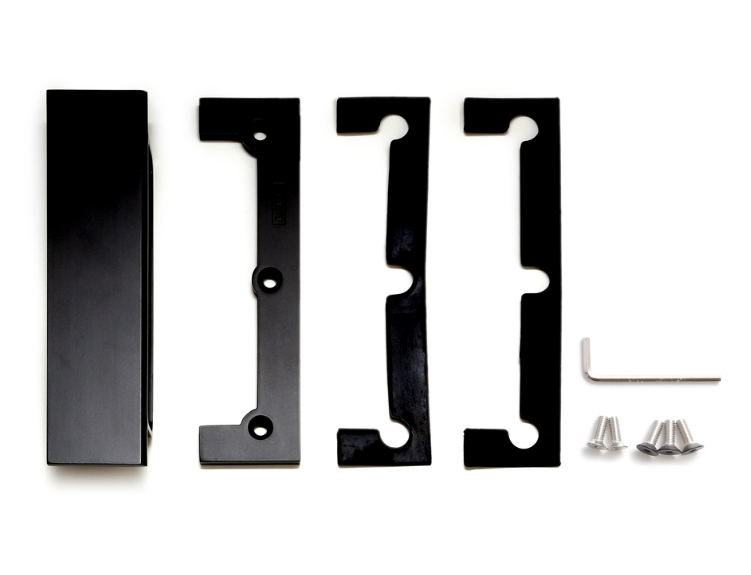

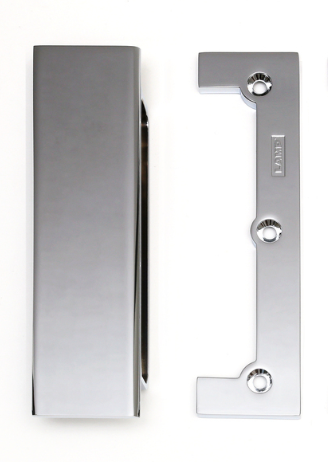

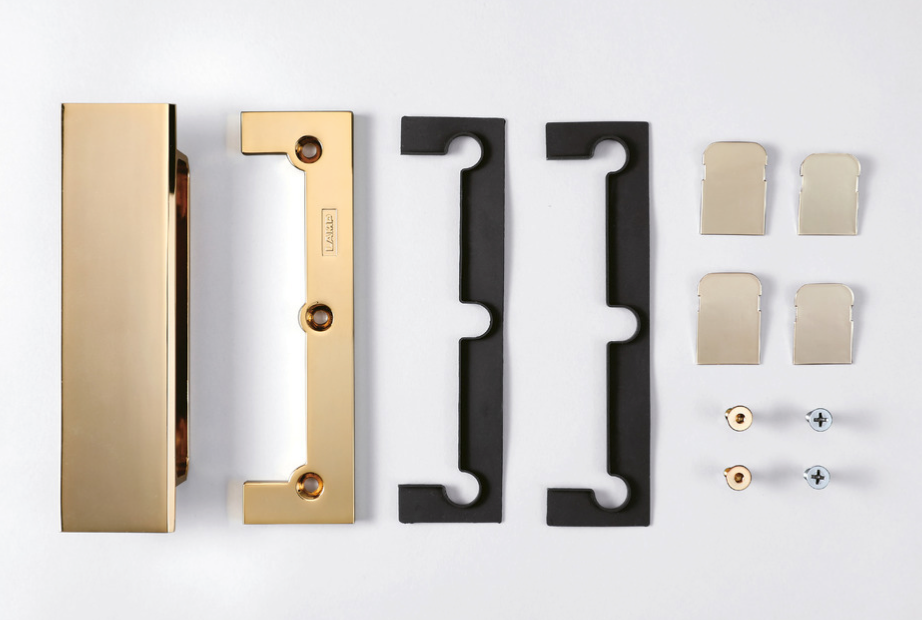

Pack: One Bracket, including Screws and cover plates. Please check a lead time on those brackets before purchase.
Hinges HES 120 for the glass door need to be purchased separately. Instructioninfo available to download. Recommended for use with the compatible door damper/door closers: LDD-S and LDD-V
