Concealed Adjustable Small Sugatsune HES3D-90 Door Hinge

Concealed Adjustable Small Sugatsune HES3D-90 Door Hinge

3D Concealed light-duty door hinge for up to 16kgs.
Concealed door hinges, also known as hidden or invisible hinges, offer a seamless solution for doors. Concealed hinges are installed within the door and frame, providing a clean and minimalist look. The primary advantage of concealed door hinges lies in their ability to enhance the aesthetic appeal of doors by eliminating visible hardware.
Concealed light-duty hinge for un-rebated flush faced quality timber doors.
Concealed Hinge from Sugatsune, designed for easy installation and a sleek, hidden look, perfect for high-end furniture and architectural projects. Perfectly suitable for cabinet doors. This award-winning hinge offers 3-way adjustment and exceptional durability, having passed a 50,000 open/close cycle test

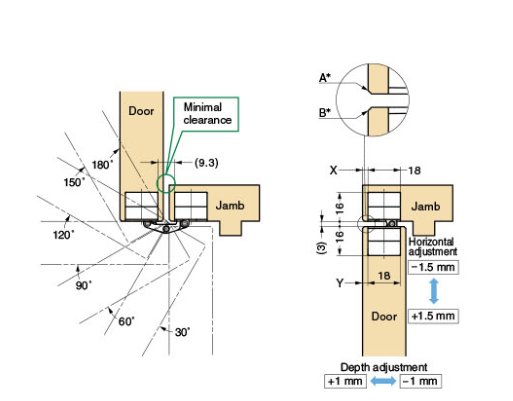

For doors 23mm thick the hinge will give 180º opening, adjustment bolts are concealed behind front covers which slip on and off easily.
You may require 2 of 3 hinges, depending on the weight of the door.

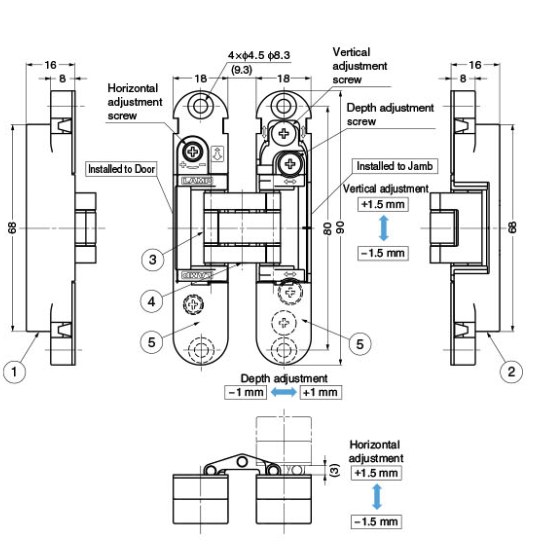

Overall Hinge Height: 90mm
Hinge Thickness: 16mm
Hinge Width: 18mm
Min Door Thickness: 23mm
Maximum door width: 600mm
Maximum door height: 1500mm(can be used on taller doors if it falls within the weight)
Door Weight: 12kg for 2 hinges & 16kg for 3 hinges
Material: Zinc Alloy

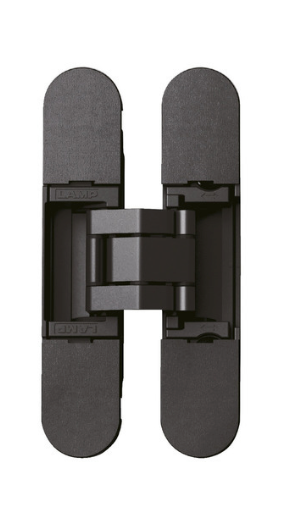

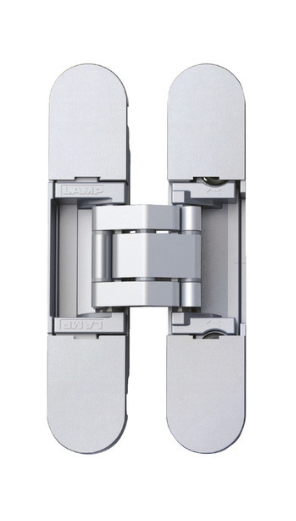

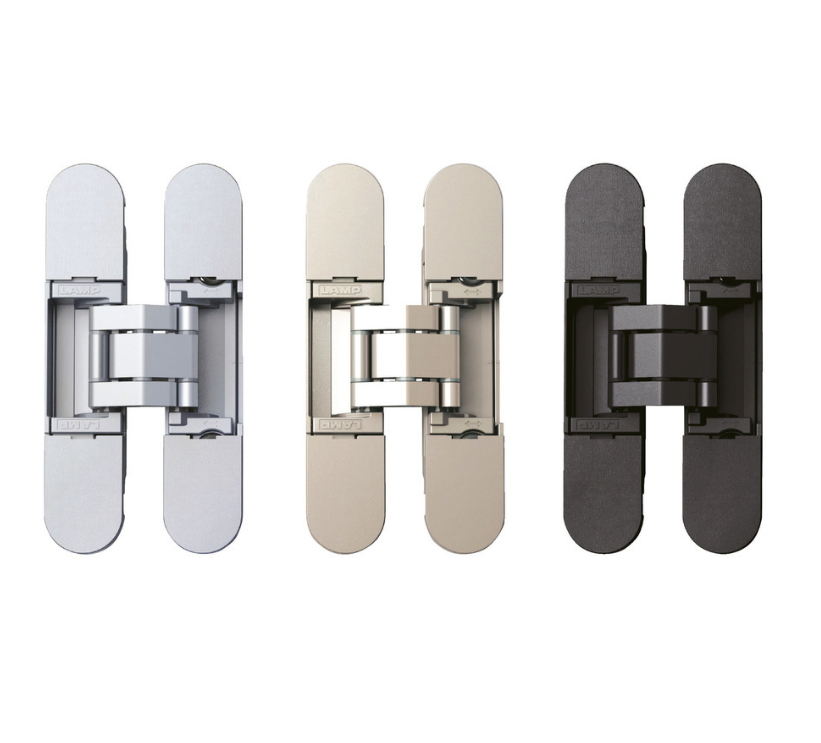

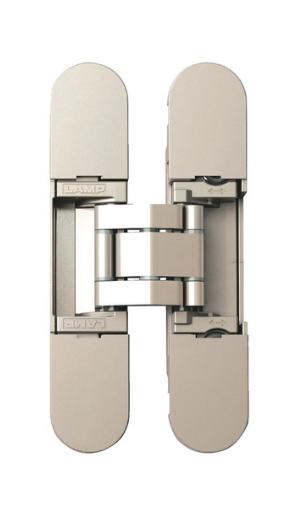

Finish: Black, Champagne Gold, Silver
Opening Angle: 180 Degrees

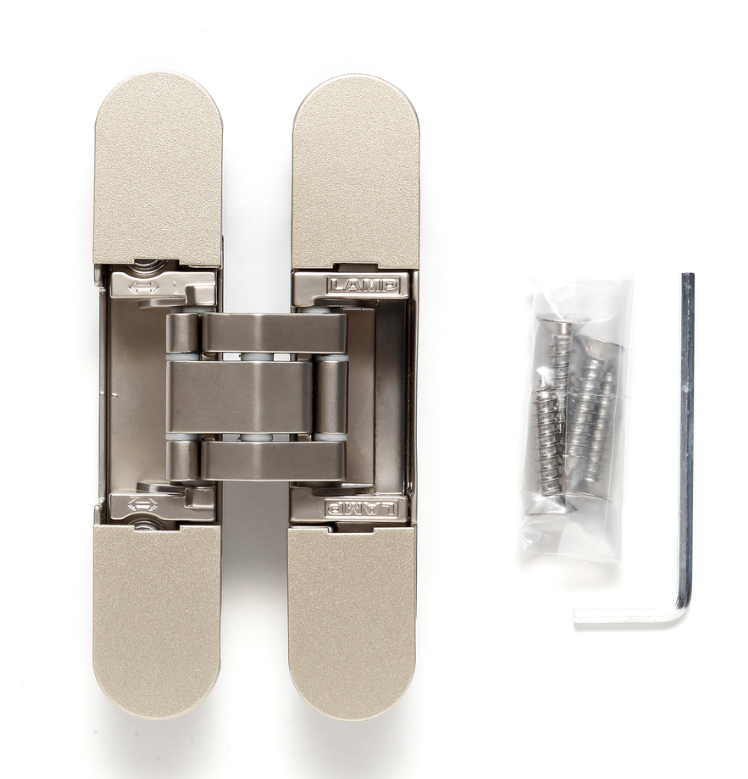

Pack: One Hinge, including Screws and cover plates

Other HES 140 Heavy Duty available.
Instruction info available to download
Those hinges can be used with a glass door; you need to use a suitable door bracket HES3D-G90BKT
