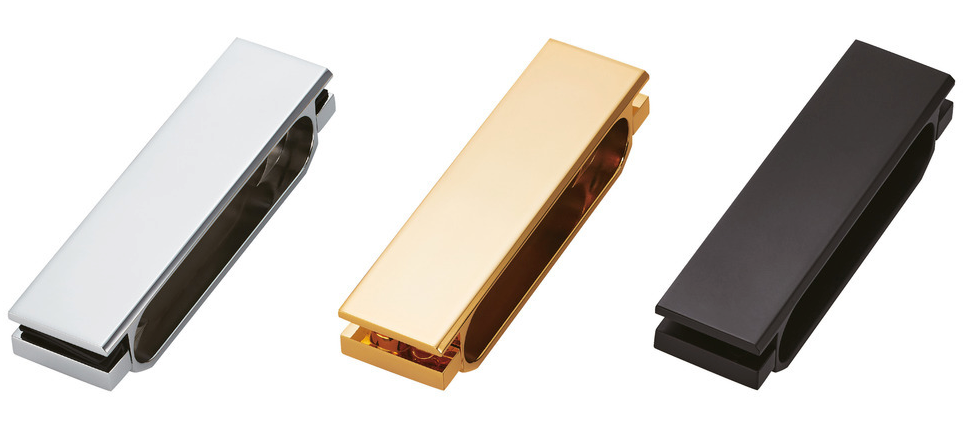

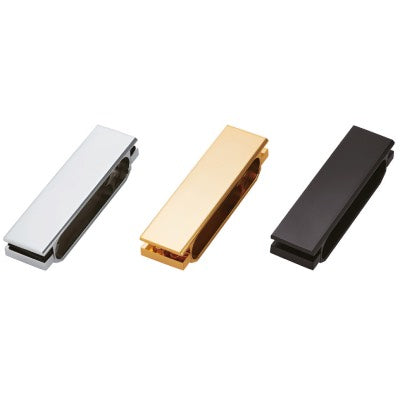

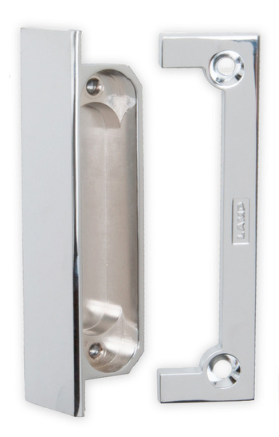

Glass Bracket for Concealed Adjustable Sugatsune HES3D-90 Door Hinge

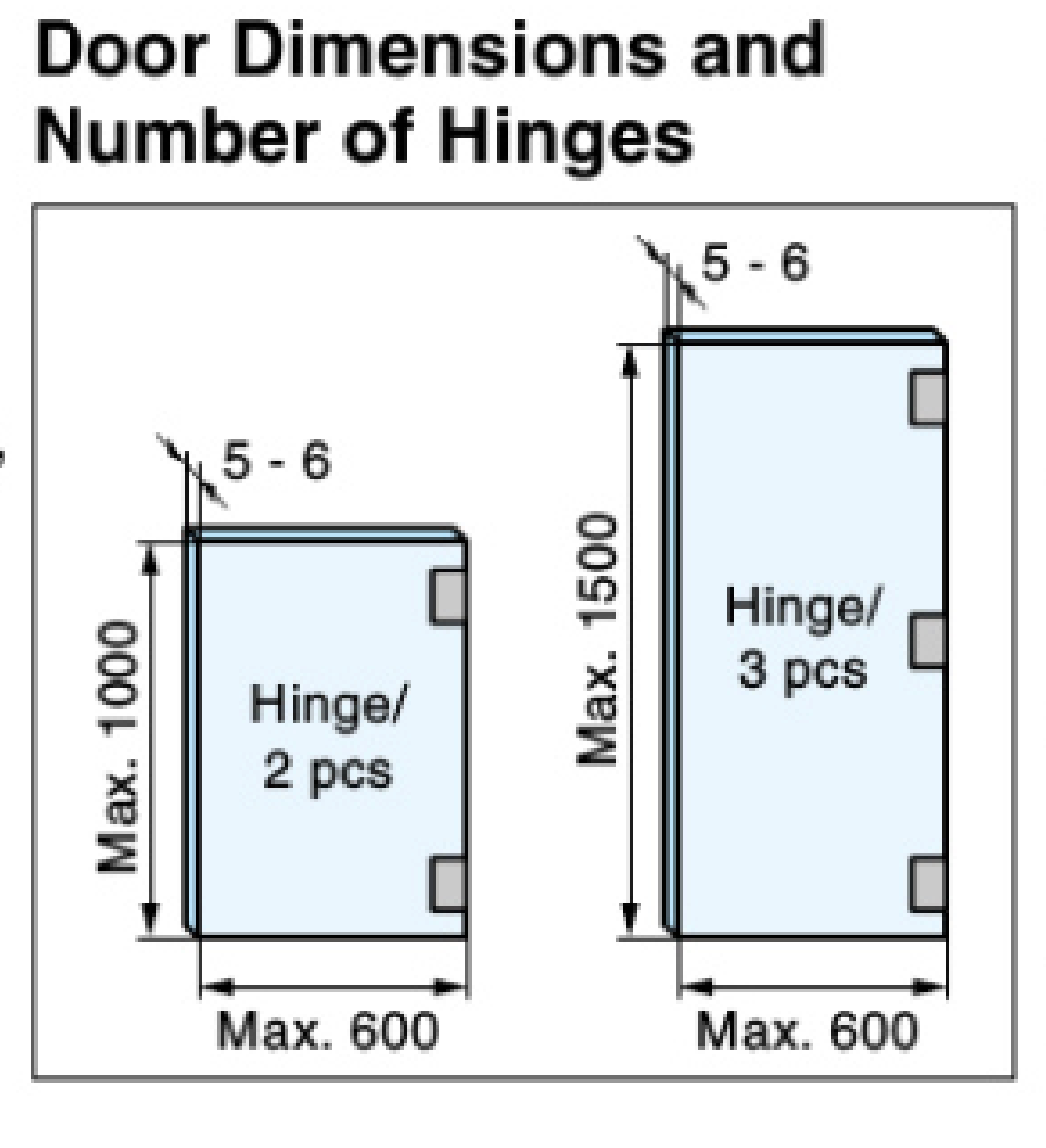

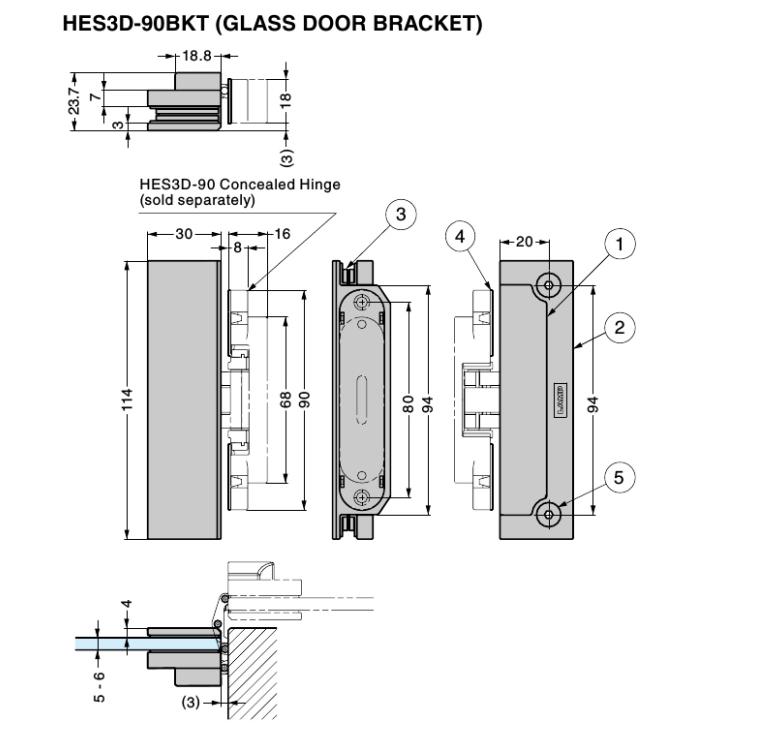

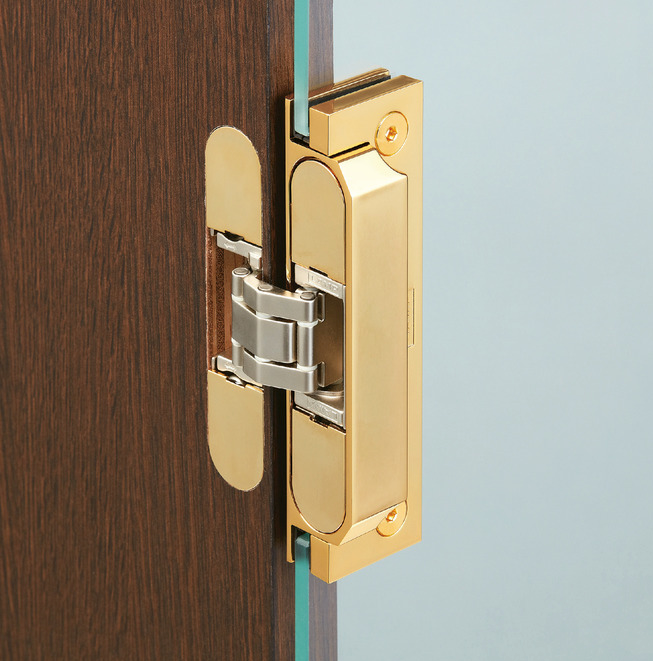

Concealed door hinges, also known as hidden or invisible hinges, offer a seamless solution for doors. Concealed hinges are installed within the door and frame, providing a clean and minimalist look. The primary advantage of concealed door hinges lies in their ability to enhance the aesthetic appeal of doors by eliminating visible hardware. Concealed small-duty hinge for quality timber doors, steel or glass. Enhance your glass door installation with the durable and stylish HES3D-G90BKT glass door bracket, designed for seamless functionality and modern aesthetics. This bracket in collaboration with the oval 3-way adjustable ultra flush hinge, will allow fitting of glass doors. Dedicated to room dividing or entrance doors, secret doors and office entry. For doors 5-6mm thick, the hinge will give 180º opening, adjustment bolts are concealed behind front covers, which slip on and off easily. You may require 2 or 3 hinges, depending on the weight of the door. Overall Bracket Height: 114mm Bracket Thickness: 24mm Bracket Width: 30mm Glass Thickness: 5-6mm Maximum door width: 600mm Maximum door height: 1500mm Door Weight: 12kg for 2 hinges & 16kg for 3 hinges Material: Zinc Alloy Finish: Black, Gold, Chrome

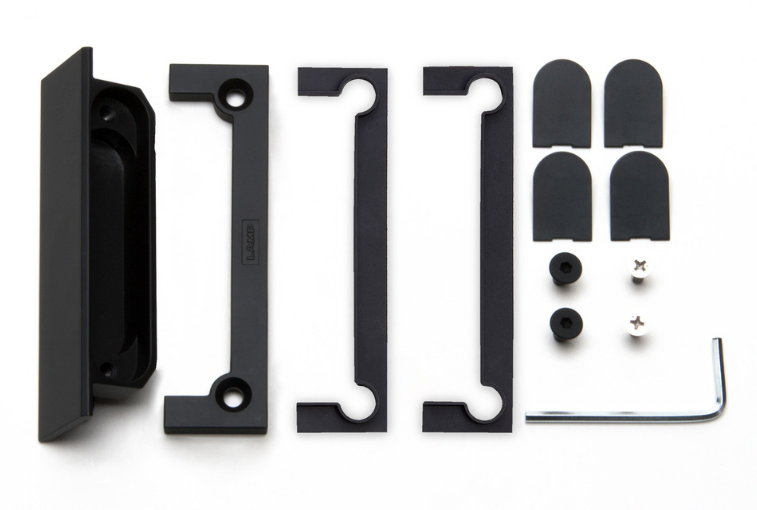

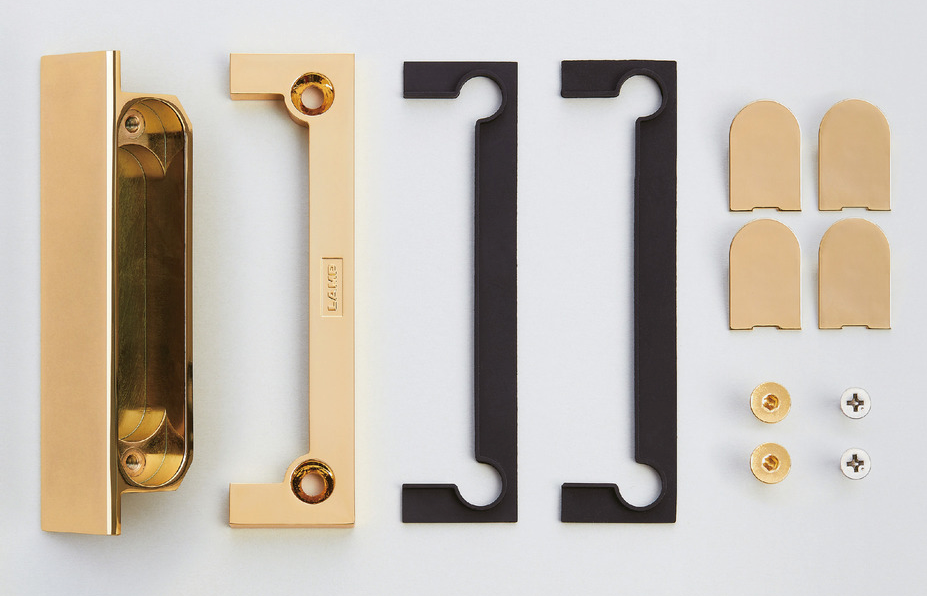

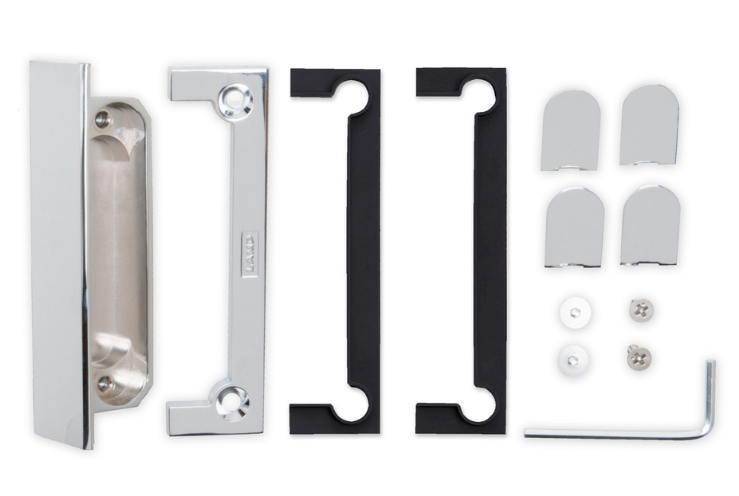

Pack: One Bracket, including Screws and cover plates Please check a lead time on those brackets before purchase.
Hinges HES 90 for the glass door need to be purchased separately. Instructioninfo available to download. Recommended for use with the compatible door damper/door closers: LDD-S
