Door Straightening System Set for large Wooden Doors

Door Straightening System Set for large Wooden Doors

A door straightening system set is a device that helps to keep wooden doors rigid.
It can be installed on hinged and wooden sliding doors that are max 16mm thick.
The Door Straightening system door Is a popular choice for this purpose.
It comes In three Sizes, 2250mm, 2450mm and 2650mm.
Adds rigidity to wooden sliding or hinged doors from 16 mm thick and prevents warping in either direction and Ideal for large, heavy doors
Suitable for retro fitting; can straighten warped doors
Normally two straightening fittings are recommended per door panel

Please note: Not suitable for hardwood

Colour/Finish: Trim strip: Grey, Cup: Nickel Plated, Tensioner: Nickel plated
Application: For hinged and sliding doors, prevents doors warping in either direction or straightens doors which have become warped

For Door height:
≤2,250 mm, dim. A: 1838 mm
≤2,450 mm, dim. A: 1988 mm
≤2,650 mm, dim. A: 2248 mm
For door thickness: ≥16 mm
Material:
Threaded Bar: Steel
Tensioner: Zinc alloy
Trim strip: Plastic
Installation: For recess mounting and screw fixing Fitting Instruction
Adjustment: Via pre-mounted hexagonal nut with SW 8 open-ended spanner

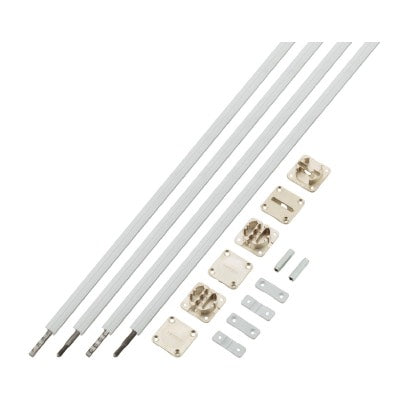

Supplied: 1 set consists of 2 straightening fittings including all individual components and open-ended spanner

Additional information attributes
2 straightening fittings recommended per door leaf.
Not suitable for hardwood!
Please note when using this product in combination with lacquered panels, a pattern of the routered recesses may emerge on the front.

Other are available too Sugatsune Concealed Straightener Bar for Large Doors
