Metal Drawer Set High Black AxisPro Slim Box System C168mm

Metal Drawer Set High Black AxisPro Slim Box System C168mm Height.

All-purpose application, the AxisPro drawer system is a solution for every type of interior. Subtle design thanks to the use of thin side panels, the drawer becomes light and elegant. Firstly, we provide a wide range of design options, including 5 heights of standard and internal drawers.*
Secondly, the drawer side panel, only 14 mm wide, gives the drawer a simple and modern look, and the system finish in White and Anthracite.
While black colour finishes will help creating many unusual arrangements
AxisPro has also a simple 2 plane front adjustment - vertical and horizontal
The full extension allows access to the entire contents of the drawer
Metal Drawer Set High AxisPro Slim Box System C168mm
Closing: Soft Close
Extension: Full Extension
Allowable load: 40 kg
Colour: Black
Side Heights C: 168 mm,
Minimum height require: 198 mm
Available lengths: 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm, 550 mm, 600 mm
Drawer type: Standard or inner
Material: Steel

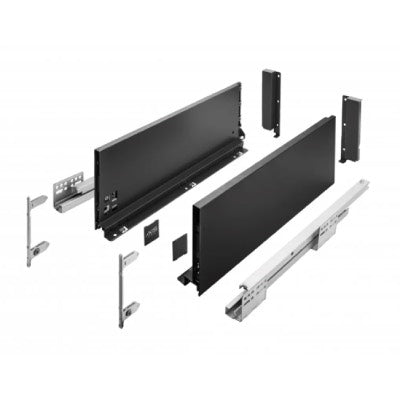

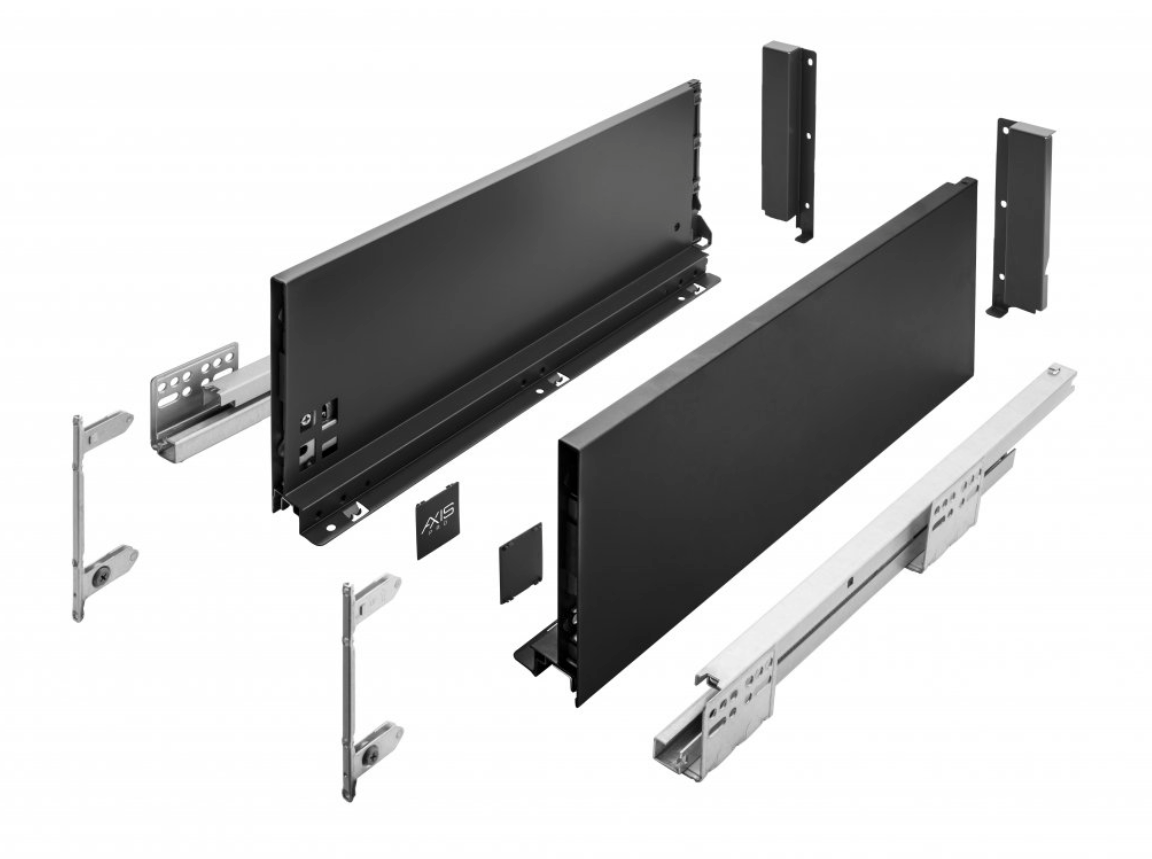

Set contains:
- 2x drawer sides
- 2x soft close drawer runners
- 2x front fixings
- 2x back brackets
Bottom/Base, back (16mm board) and front panels are not included
Fitting instruction AxisPro.pdf

Drilling template available for easy installation AXISPRO Template
*Please Note: only 450, 500mm are available now
