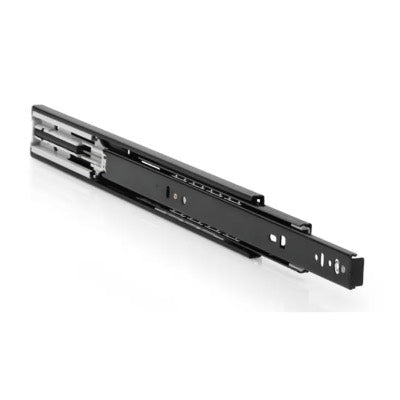

Soft Closing Ball Bearing Drawer Runners Black Standard Full Extension

Soft Closing drawer Runners black ball bearing Standard Full Extension.

Soft Closing drawer runners black, this Accuride light-duty slide introduces a new kind of effortless in closing.
Those runner will soft close on last 45 mm of closing cycle
Partially shielded mechanism prevents dust or debris from interfering with the operation 12.7 mm slide thickness
Hold-in feature holds the closed drawer in
Lever disconnect for easy installation and removal
The cam drawer adjust offers installers a simple, yet precise mechanism for vertical drawer adjustment
Not suitable for use with mounting brackets
Suitable: Standard or inner drawer
Available in sizes - from 350mm to 700mm
Quick Release System from front

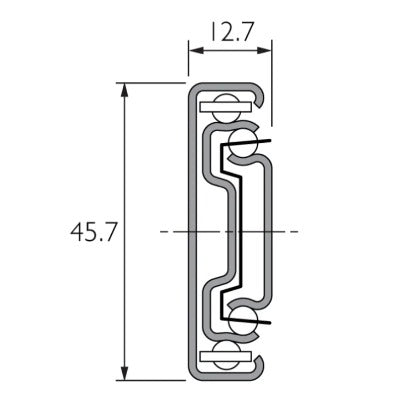

Height - 45mm
Thickness - 12.7mm
Allowable load - 45 kg
Full extension Telescopic slider construction
Bearing: Ball bearings
Material: Mild Steel
Finish: Zinc/ Black
Mounting: Side Mounting, Drawer width must not exceed slide length
With Cam Adjust
Optimum performance allow between +0.2mm and +0.5mm over the nominal runner thickness, for the runner space

Please note max.drawer width to be used. Drawer width should not exceed installed length
Not for lateral file drawer applications or where the drawer is wider than it is deep

Push to Open version available from here Push to Open Ball Bearing Drawer Runners Black Standard Full Extension
Link for Movie DB3832-EC Black
