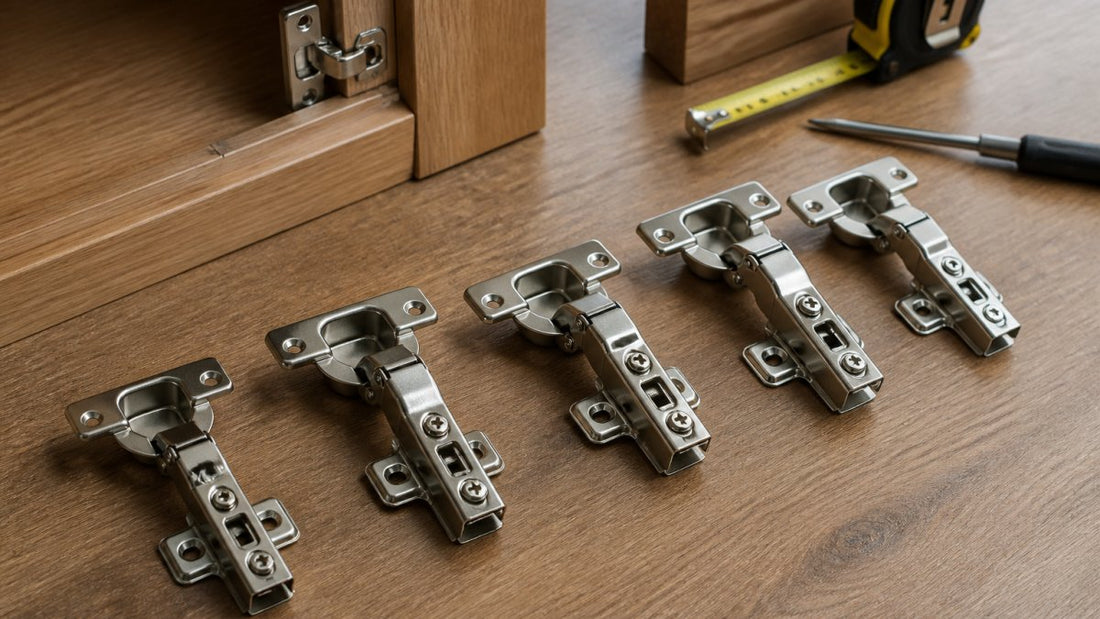

5 Best Soft Close Hinges for Heavy Doors
Table of Contents
- Soft Close Hinges for Heavy Doors: Quick Comparison
- 1. Sugatsune Soft Close Wide-Angle Heavy Duty Cabinet Hinge (Nickel Plated)
- 2. Sugatsune Soft Close Wide-Angle Black Heavy Duty Cabinet Hinge
- 3. Sugatsune Soft-Close Full Overlay Thick Door Cabinet Hinge H360
- Understanding Soft Close Hinge Weight Capacity
- How to Adjust Soft Close Cabinet Hinges for Optimal Performance
- Soft Close Cabinet Hinge Installation: What You Need to Know
- Soft Close Hinges for Face Frame Cabinets: Overlay Types Explained
- Frequently Asked Questions
Last Updated: October 11, 2026
Soft Close Hinges for Heavy Doors: Quick Comparison
Heavy doors demand hinges that can handle the weight without slamming shut or wearing out prematurely. We've identified the 5 best soft close hinges for heavy doors, which combine strong weight capacity with smooth damping action, ensuring your cabinet doors close gently every time. At FixFit, we supply professional-grade hinges designed specifically for demanding applications where durability and performance matter.
Soft close hinges use hydraulic dampers to control closing speed, protecting doors and frames from impact damage. For joiners and cabinet makers, the right hinge choice determines whether a project feels premium or disappointing to the end user.
The hinges we've selected here address the core challenge: supporting doors up to 25-40 kg whilst delivering the smooth, controlled closing action that clients expect. Each option trades off weight capacity, opening angle, and price differently, so your choice depends on your specific project requirements.
| Hinge Model | Max Weight (2 hinges) | Max Weight (3 hinges) | Opening Angle | Price |
|---|---|---|---|---|
| Sugatsune Wide-Angle Nickel | 25 kg | 40 kg | 160° | £76.70 |
| Sugatsune Wide-Angle Black | 25 kg | 40 kg | 160° | £85.78 |
| Sugatsune H360 Full Overlay | 6 kg | 18 kg | 100° | £6.40 |
| Sugatsune H360 Half Overlay | 6 kg | 18 kg | 100° | £6.42 |
| Sugatsune H360 Inset | 6 kg | 18 kg | 95° | £8.40 |
1. Sugatsune Soft Close Wide-Angle Heavy Duty Cabinet Hinge (Nickel Plated)
For heavy doors up to 25 kg per pair, the Sugatsune wide-angle hinge in nickel finish is the professional workhorse. It opens to 160° for full cabinet access and includes three-way adjustment for overlay, vertical, and depth positioning.
The hinge includes a mounting plate and screw covers. The nickel plating suits most cabinet styles. At £76.70 per pair, the quality justifies the cost for high-end projects where door performance affects client satisfaction.
The red holding pin must stay in place during installation; removing it prematurely damages the damper. Once mounted and adjusted, remove the pin to activate soft close.
What works: The 160° opening angle suits most layouts. The damper adjusts smoothly across the full weight range. Three-way adjustment corrects minor installation errors without removing the hinge.
What to watch: The restocking fee of 25% applies to returns marked as not faulty, so verify your measurements before ordering. Door thickness must fall between 18-36 mm for proper cup depth.
2. Sugatsune Soft Close Wide-Angle Black Heavy Duty Cabinet Hinge
The black nickel version performs identically to the nickel-plated model with the same 25 kg capacity, 160° opening angle, and three-way adjustment, but offers a contemporary aesthetic.
Black nickel finishes coordinate well with stainless steel appliances and dark hardware, eliminating the need to source matching hinges elsewhere.
At £85.78 per pair, the black version costs roughly £9 more per pair for the finish upgrade, a reasonable cost for aesthetic consistency.
Pros: Finish matches contemporary design trends. Identical performance to the nickel version. Works on doors up to 36 mm thick.
Cons: Higher cost than the nickel option. Black finishes can show fingerprints more visibly than neutral tones.
3. Sugatsune Soft-Close Full Overlay Thick Door Cabinet Hinge H360
The H360 full overlay hinge suits lighter cabinet doors up to 6 kg per pair (18 kg on four hinges). It opens to 100° and includes adjustable soft close damping.
At £6.40 per pair, the H360 delivers excellent value for projects with multiple lighter doors, such as bathroom vanities or kitchen upper units.
The full overlay configuration suits doors flush with the cabinet frame. The nickel finish is durable and neutral. The hinge requires a separate mounting plate (360-P4W-30T), so factor that cost into your budget.
What works: Soft close damping is smooth and adjustable. Full overlay type suits contemporary cabinet designs. Cost-effective for multi-door projects.
What doesn't: Weight capacity limits it to lighter doors. Mounting plate sold separately adds to the total cost. 100° opening angle is narrower than the wide-angle models.
Understanding Soft Close Hinge Weight Capacity
Weight capacity is a design limit that directly affects damper lifespan. Exceeding it causes the hydraulic fluid to work harder, generating heat and accelerating wear.
Manufacturers specify weight capacity per pair and per three or four hinges. The Sugatsune wide-angle hinge supports 25 kg on two hinges or 40 kg on three hinges, so a 30 kg door requires three hinges.
Calculate door weight by measuring dimensions and thickness, then multiply by material density. A solid timber door 800 mm × 600 mm × 18 mm weighs roughly 5-7 kg; glass doors weigh 8-12 kg; metal-frame doors typically fall between 6-15 kg.
The damper forces hydraulic fluid through a small orifice to control closing speed. Overloading the hinge causes fluid pressure to spike, preventing smooth control and risking slamming.
Temperature affects damper performance: cold thickens fluid, slowing closing; warmth thins it, potentially speeding closing. Manufacturers test across temperature ranges and specify capacity at standard conditions (20°C).
For heavy doors, use three hinges rather than two to distribute weight across more dampers and extend lifespan.
How to Adjust Soft Close Cabinet Hinges for Optimal Performance
Once installed, soft close hinges require fine-tuning to perform correctly. The goal is smooth, controlled closing without slamming, and doors that sit flush with the cabinet frame.
Sugatsune Soft Close Wide-Angle Heavy Duty Cabinet Hinge →
Step 1: Check the Overlay Loosen the horizontal adjustment screw (marked "H") and slide the hinge mounting plate left or right until the door aligns with the cabinet frame. Retighten the screw.
Step 2: Adjust Vertical Position Loosen the vertical adjustment screw (marked "V"), shift the hinge up or down, and retighten to even the gaps at top and bottom.
Step 3: Adjust Depth Loosen the depth screw (marked "D") to prevent the door from binding or sitting too proud of the cabinet frame.
Step 4: Test the Closing Speed Close the door slowly and feel the damper resistance. If the door closes too fast, turn the closing-speed adjustment screw clockwise to slow it; anticlockwise to speed it up. Make quarter-turn adjustments and test after each change.
Step 5: Check for Creep Open the door to 90° and release it. A properly adjusted hinge holds the door at 90° without drifting. If it creeps shut, tighten the damper; if it won't close, loosen it.

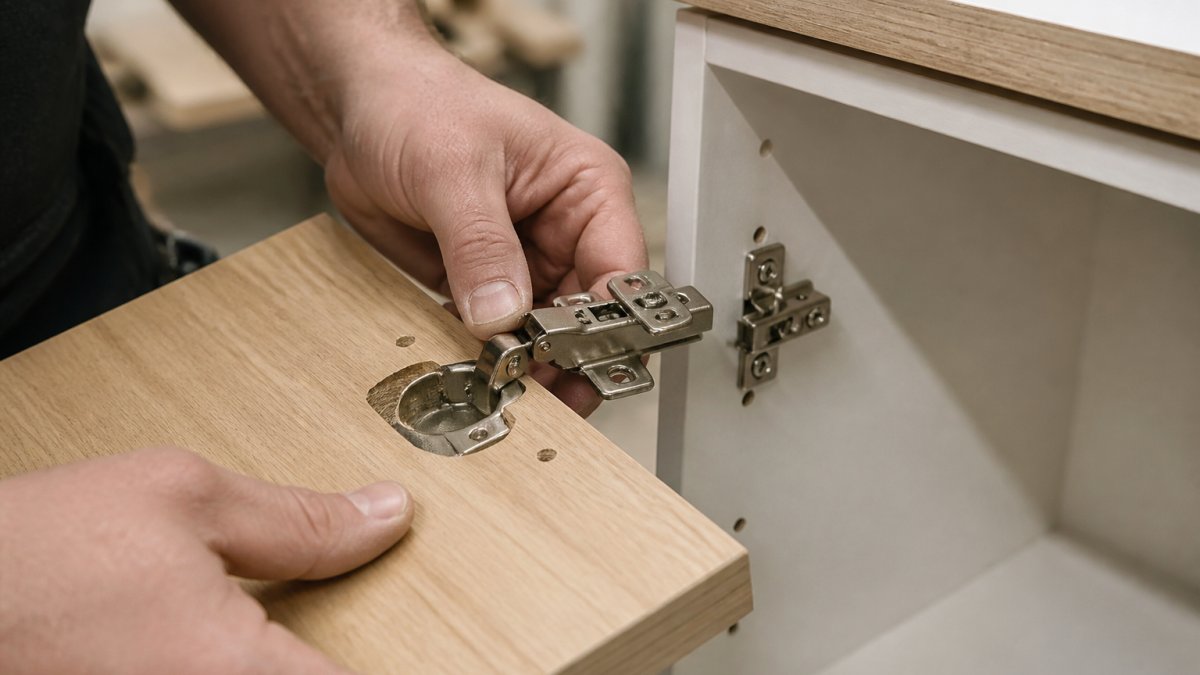

Soft Close Cabinet Hinge Installation: What You Need to Know
Correct installation is the difference between premium and disappointing performance. Poor installation, misaligned cup holes, incorrect depth, or over-tightening prevent smooth damper function.
Preparation Measure door thickness (typically 18-36 mm for heavy-duty models) and verify the cup hole diameter matches the hinge specification (most Sugatsune hinges use 40 mm). Drill new holes if necessary.
Mounting Plate Installation Bolt the mounting plate to the cabinet frame, positioning it so the hinge cup sits at the correct depth. Drill pilot holes to prevent splitting, and drive screws firmly without over-tightening.
Hinge Installation Insert the hinge into the cup hole flush with the door surface. Align the hinge clip with the mounting plate and push downward until it clicks into place.
Holding Pin Removal Leave the red holding pin in place until the hinge is fully mounted and aligned. Gently pull it straight out; do not prise or twist.
Initial Adjustment Close the door gently and observe the closing action. If it slams, tighten the damper adjustment screw; if it closes too slowly, loosen it.
Common Installation Mistakes Drilling the cup hole off-centre causes binding and uneven damper pressure. Use a 40 mm Forstner bit with a depth stop for consistent depth. Forgetting to remove the holding pin prevents damper function. Installing hinges on doors heavier than rated capacity causes premature wear.
Soft Close Hinges for Face Frame Cabinets: Overlay Types Explained
Face frame cabinets have a timber frame around the perimeter. The overlay type, full, half, or inset, determines door alignment and hinge selection.
Full Overlay The door covers the entire face frame, overlapping on all four sides. Full overlay hinges position the cup hole entirely on the door. This is the most common configuration in modern kitchens and suits contemporary aesthetics.
Half Overlay The door covers only half the face frame width, sitting beside another door or a fixed panel. The overlay is typically 16 mm. Half overlay hinges position the cup hole partially on the door and partially on the frame. The Sugatsune H360 half overlay hinge (£6.42) is designed for this configuration.
Half overlay is common in kitchens with multiple narrow doors or in bathroom vanities with a central drawer. It requires more precise installation because the hinge must align with both the door and the frame.
Inset The door sits entirely within the face frame opening, with no overlap. Inset hinges mount on the inside face of the frame, with the cup hole drilled into the door edge. The Sugatsune H360 inset hinge (£8.40) handles this configuration.
Inset doors are less common in modern cabinetry but appear in traditional or period-style kitchens. They demand higher craftsmanship because gaps between door and frame are visible from every angle.
Choosing the Right Type If you're upgrading existing cabinets, the face frame already dictates the overlay type. Measure the existing door position relative to the frame to confirm whether it's full, half, or inset. If you're building new, full overlay is the safest choice for most modern projects, it's forgiving of minor measurement errors and suits contemporary design.
The Sugatsune range includes hinges for all three types, so you can specify the correct hinge for your overlay without sourcing from multiple suppliers. At FixFit, we stock the full range, ensuring you get the right hinge the first time and avoid the frustration of ordering the wrong type and waiting for a replacement.
When selecting from the 5 best soft close hinges for heavy doors, you'll need to balance weight capacity, opening angle, finish, and cost against your specific project needs. At FixFit, we supply both ranges with dedicated customer support to help you select the correct specification. Cabinet hinge installation best practices and Soft close hinge damper technology guide provide additional technical detail if you need it.
Frequently Asked Questions
What is the best soft close hinge for a heavy door?
The Sugatsune Soft Close Wide-Angle Heavy Duty Cabinet Hinge is ideal for heavy doors, supporting up to 40 kg across 3 hinges. Its 160-degree opening angle and built-in damper provide smooth, controlled closing. Choose the nickel-plated finish at £76.70 or black nickel at £85.78 depending on your cabinet aesthetic and project requirements.
How much weight can a soft close hinge support?
Weight capacity depends on the hinge model and quantity used. The Sugatsune Wide-Angle Heavy Duty hinge supports 25 kg with 2 hinges or 40 kg with 3 hinges per door. The H360 series supports 6 kg with 2 hinges or 18 kg with 4 hinges. Always install the minimum number of hinges recommended for your door weight to ensure proper damping and longevity.
How do I adjust soft close cabinet hinges?
Soft close hinges feature 3-way or 4-way adjustment mechanisms. You can adjust horizontal overlay (±0-4 mm), vertical position (±2.5-3 mm), and depth (±1.5-2.8 mm). Use the adjustment screws on the hinge mounting plate. Always keep the red holding pin attached during installation and initial adjustments to maintain the correct hinge angle and damping function.
Can soft close hinges be fitted to existing cabinet doors?
Yes, soft close hinges can be retrofitted to existing cabinets if your doors meet the thickness and weight requirements. Doors must be 18-36 mm thick depending on the hinge model. You may need to drill new cup holes if the existing hinge positions differ. Professional installation is recommended to ensure correct alignment and damping performance.
