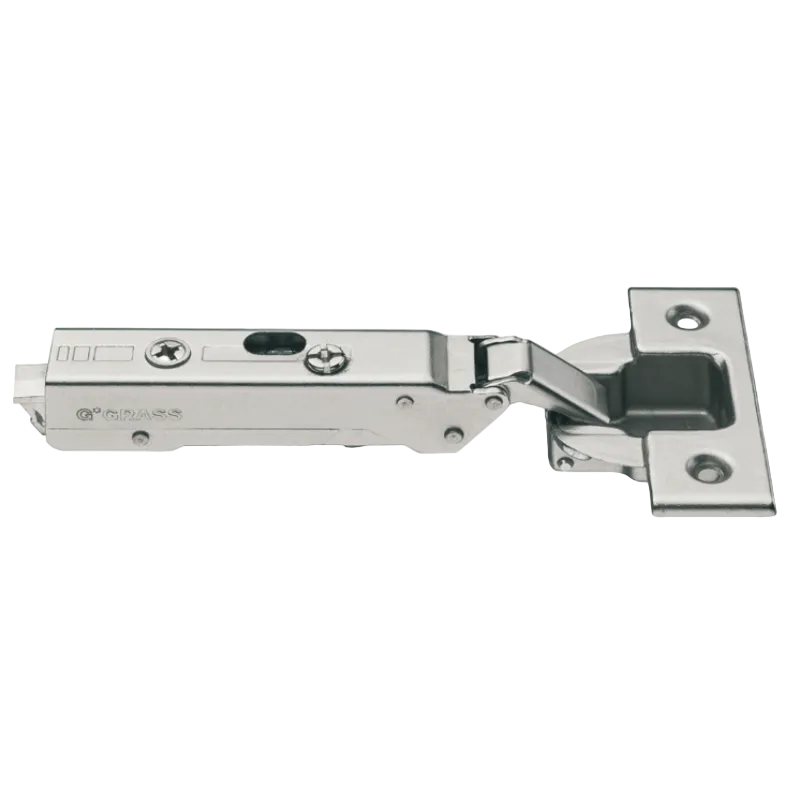

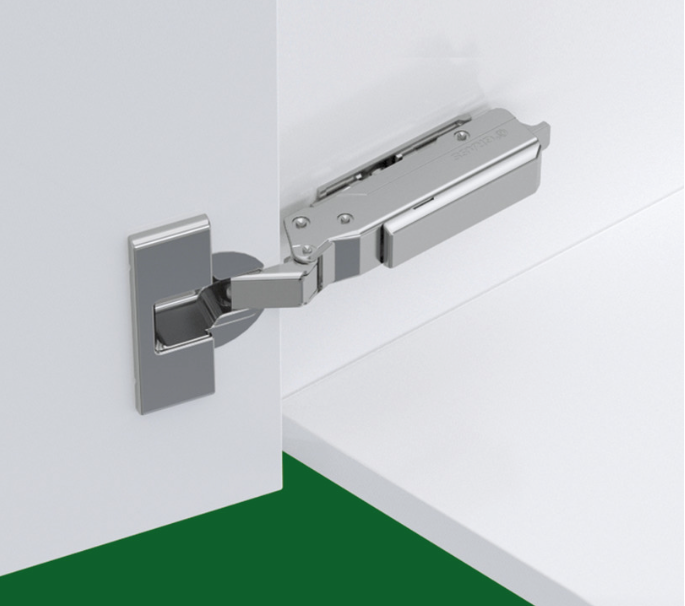

Grass Tiomos 110 Degree Full Overlay Cabinet Hinge

Grass Tiomos 110 Degree Full Overlay Cabinet Hinge

The hinge details and functions have been completely redesigned and redeveloped from the top to bottom
The damper system is concealed within the hinge arm.
In addition to the many functional features, one of the outstanding features of the hinge system is the integrated soft-close damping, which has three stages of adjustment.
As a result, in every movement phase, the closing process is smooth and seamless.
And all this from an opening angle of just 30°.
Opening doors mechanically, gently tapping the handle-free door is enough to open it.

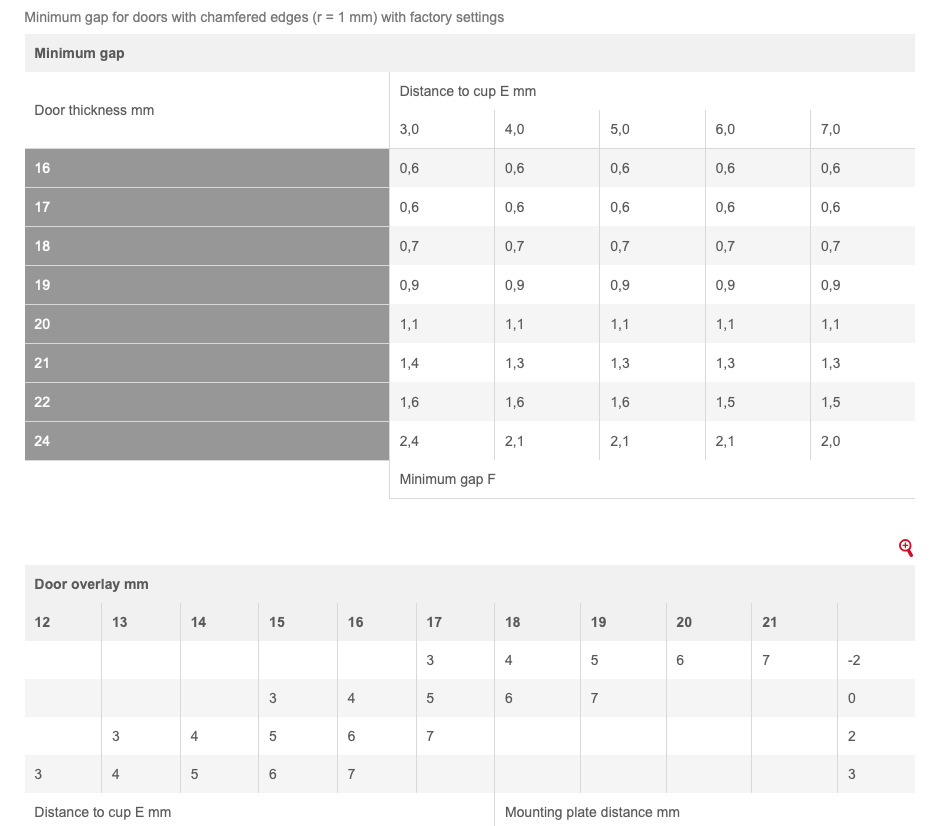

Up to 24 mm door thickness for 110/120° hinge (recommended for door thicknesses 24 mm and above, a trial fitting)
Version: Without soft closing mechanism or with soft close
Crank type: Straight
Door processing for assembly: with cup drilling

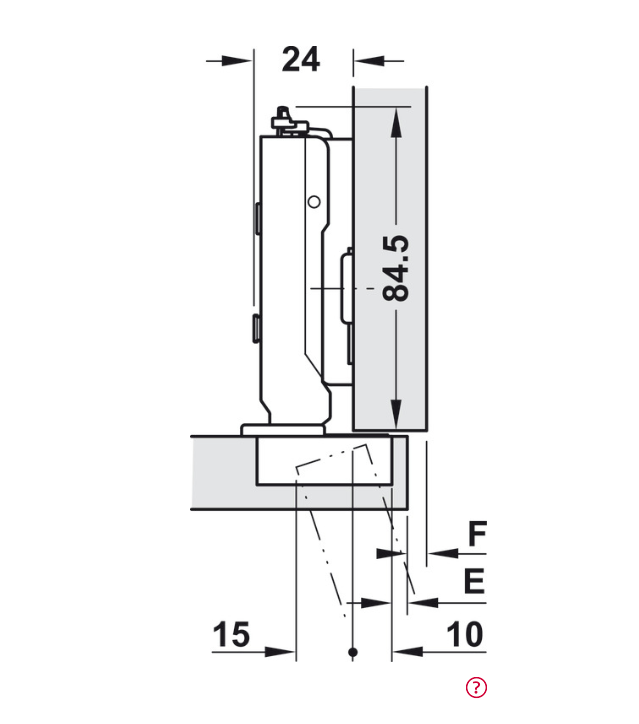

Cup drilling depth: 12.6 mm
Drilling Ø: 35 mm
Fixing: for screw fixing
Drilling pattern: 45/9.5

Order separately: Hospa ⌀ 3.5 mm countersunk screws and Mounting plates Screw or Euro screw version
NON soft close is suitable for Grass Kinvaro F-20 Flap system
